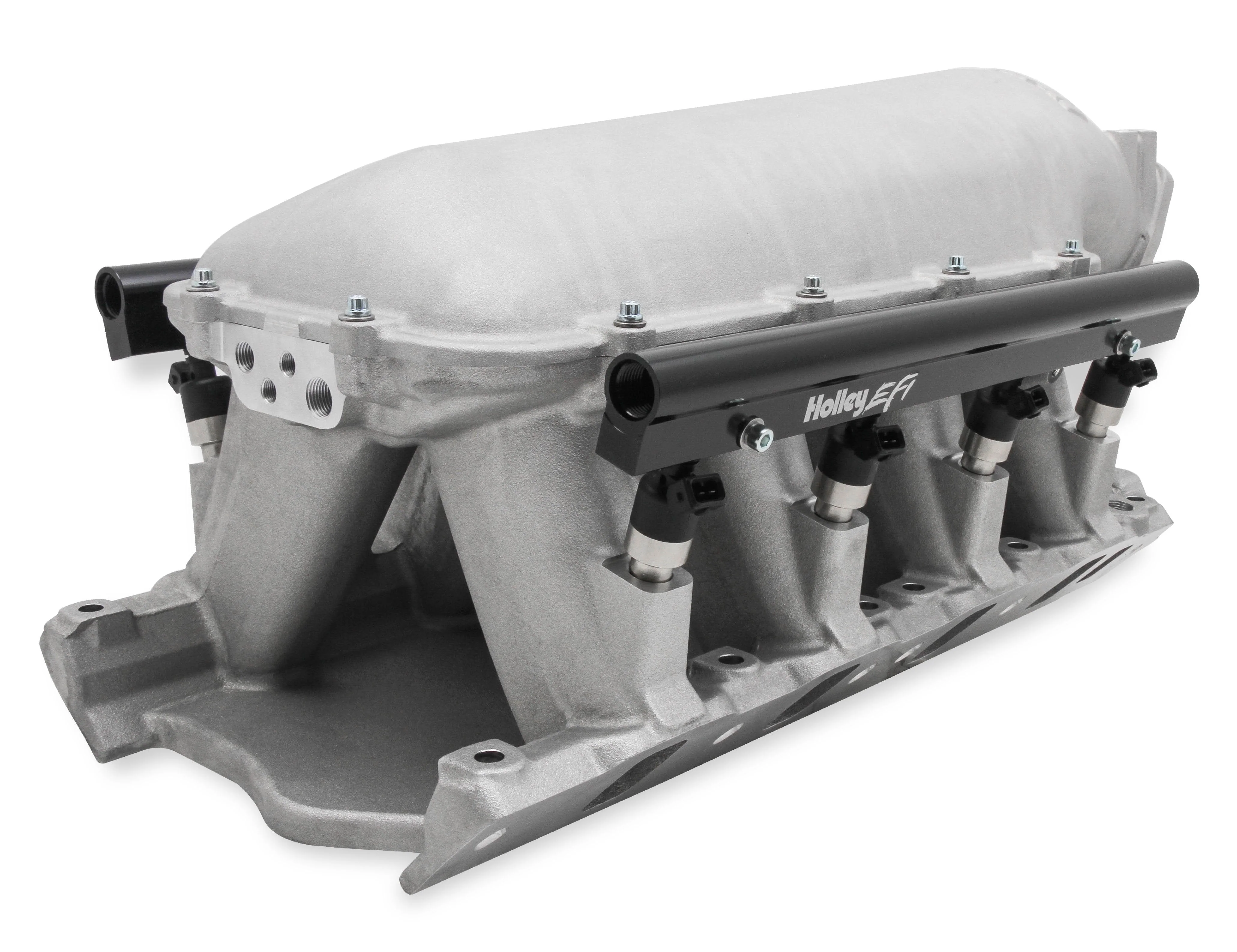

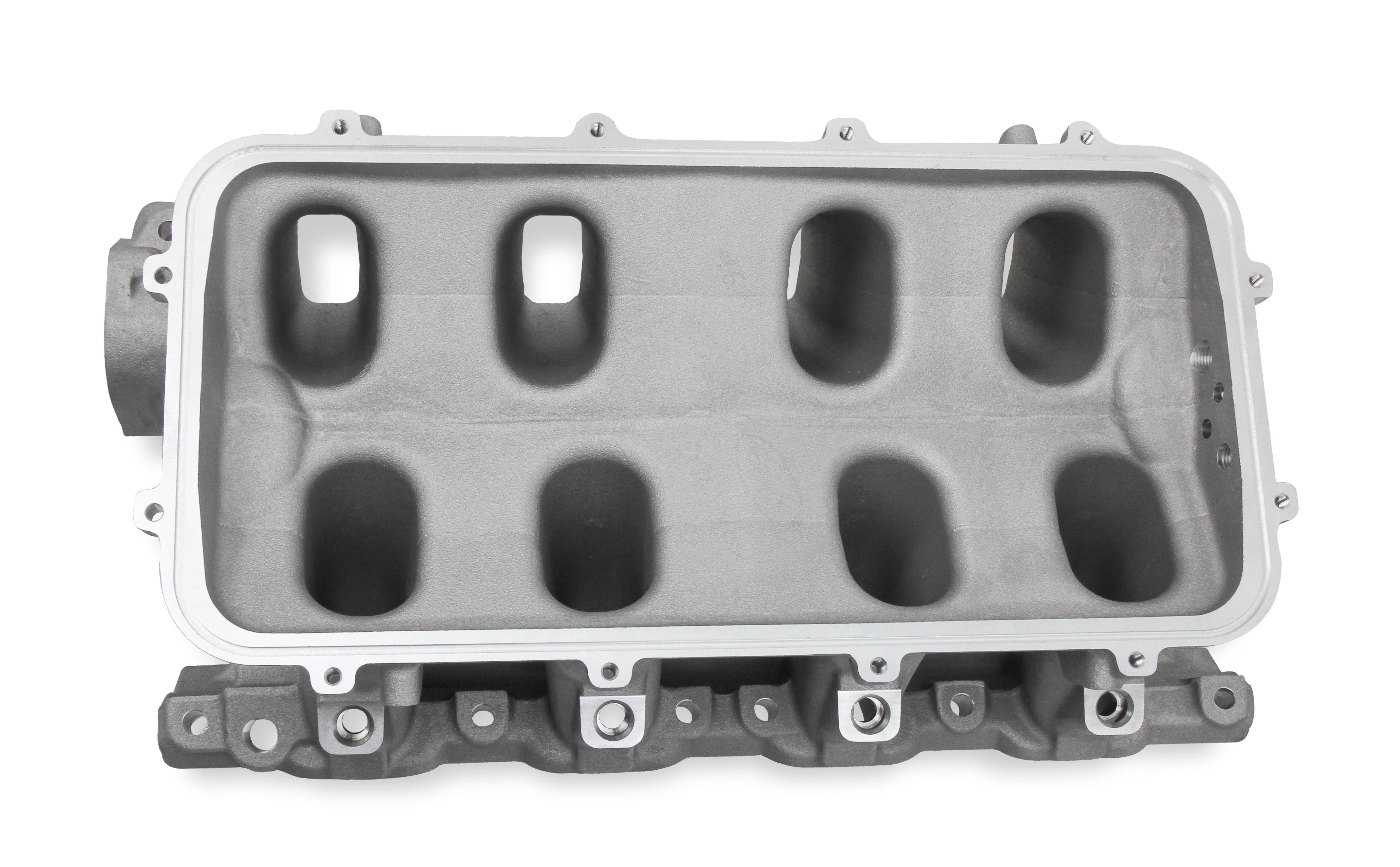

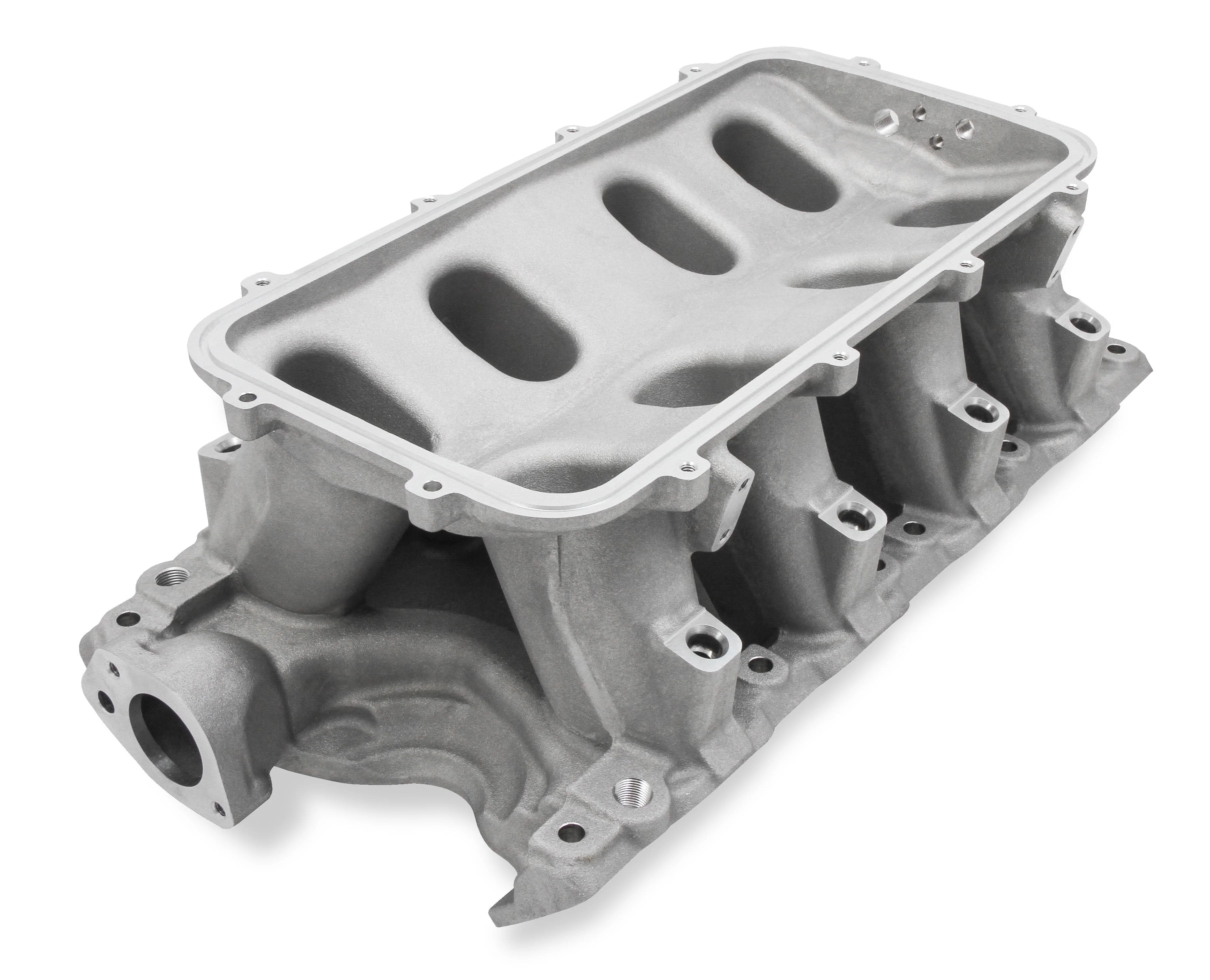

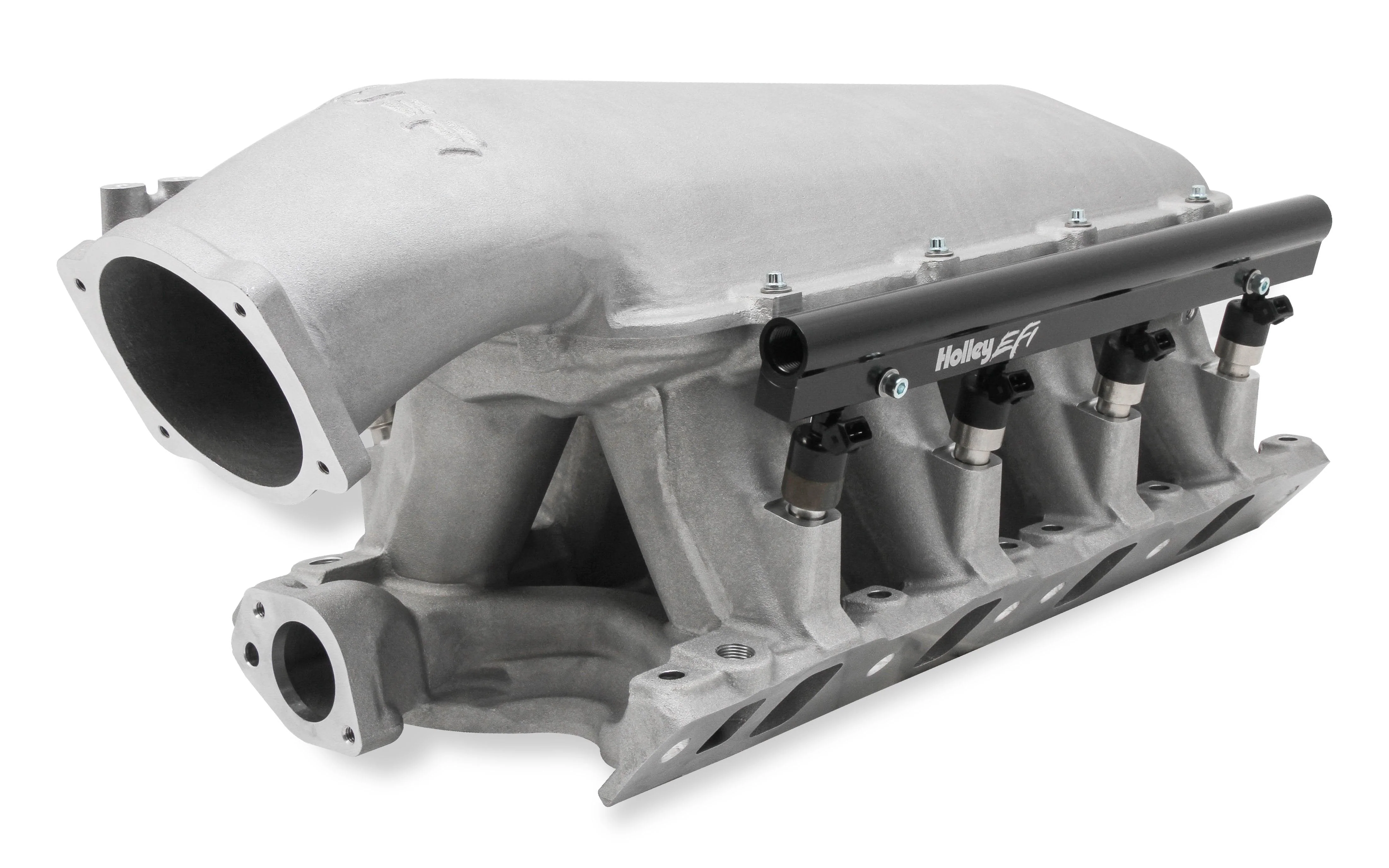

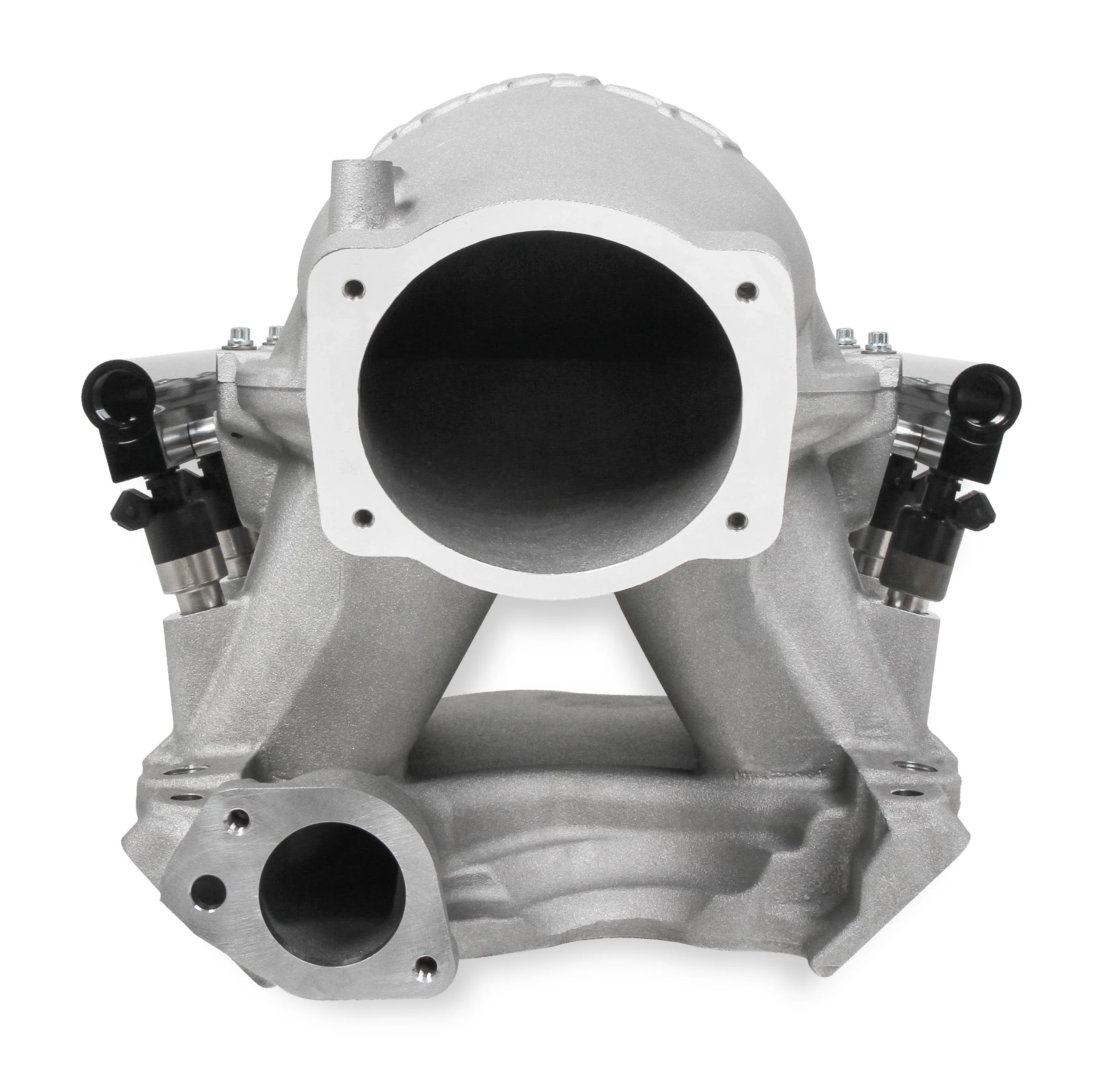

351W Ford Hi-Ram EFI Manifold 95mm LS Throttle Body Flange Top
Holley 351W Ford Hi-Ram EFI Manifold
EFI Throttle Body Intake Elbow 4150 - Fits Ford Throttle Bodies-Black Finish
Overview
This cast EFI intake elbow allows the use of Ford throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes dual throttle cable mounting bracket bosses allow the elbow throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100?? throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets hardware.
Features:
Details:
Links
Instruction Sheet
EFI Throttle Body Intake Elbow 4150 - Fits Ford Throttle Bodies-Black Finish
Overview
This cast EFI intake elbow allows the use of Ford throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes dual throttle cable mounting bracket bosses allow the elbow throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100?? throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets hardware.
Features:
- The 351W manifold is available to work with 95MM or 105MM GM LS throttle bodies
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Plenum Top Gasket Type ???? 3/32??? Round O-ring Cord

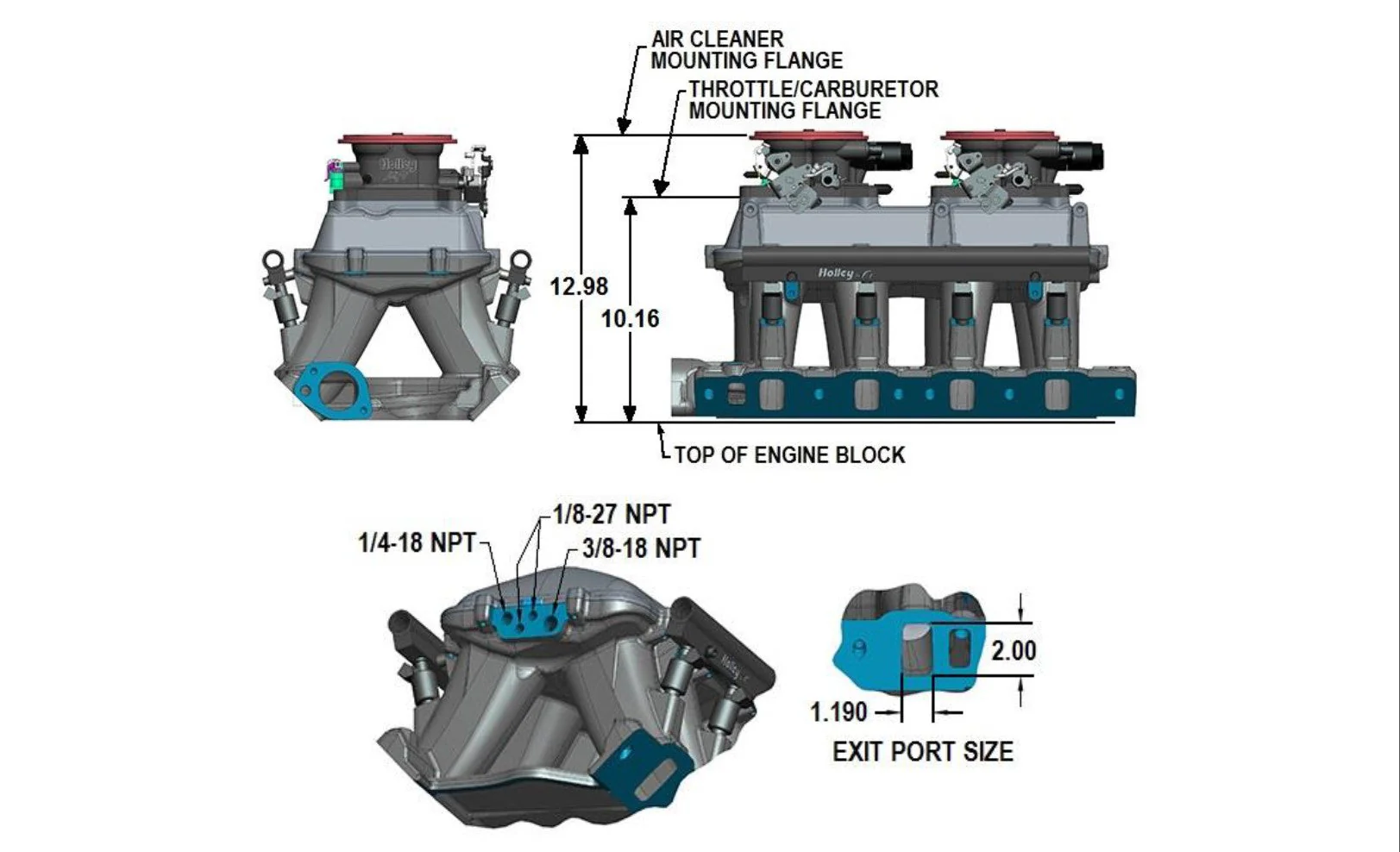

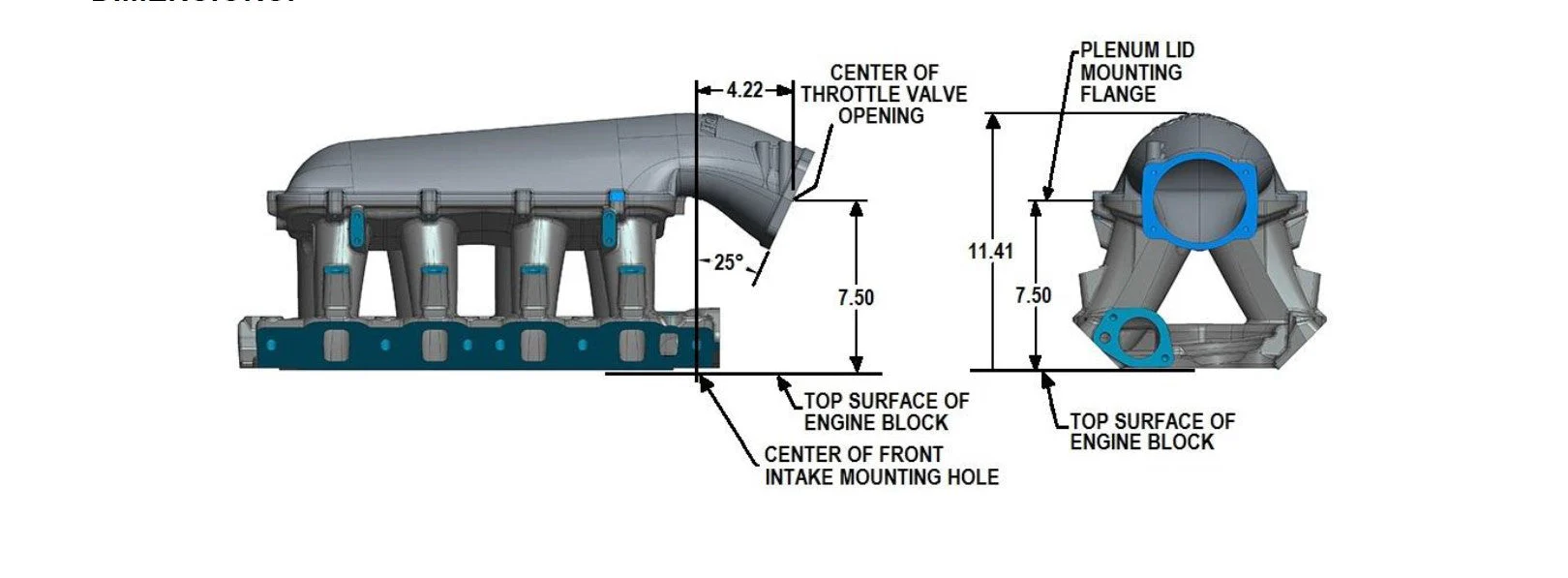

- Manifold is designed for a 9.5" deck height.

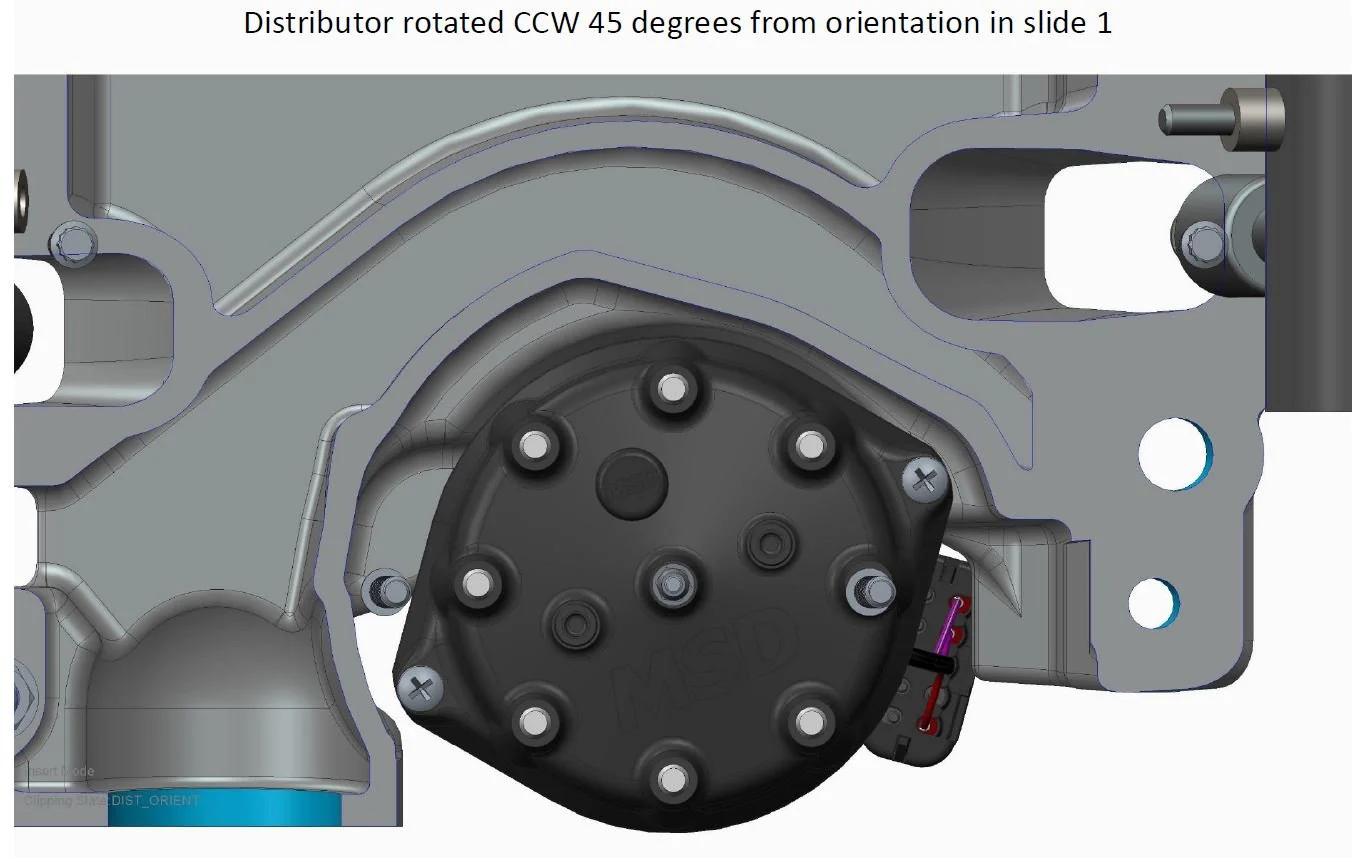

- Requires the Use of Holley EFI Dual Sync Distributor - 565-111
Details:
- Construction: Cast
- Engine: Ford 351W
- Finish: Satin
- Flange Style: EFI
- Fuel System Type: EFI
- Manifold Type: Hi-Ram
- Port Size: 2.00" x 1.190"
- RPM Power Band: 1500-7000
- Throttle Bore: 95mm
- Warranty: Limited 90 Day
Links
Instruction Sheet
