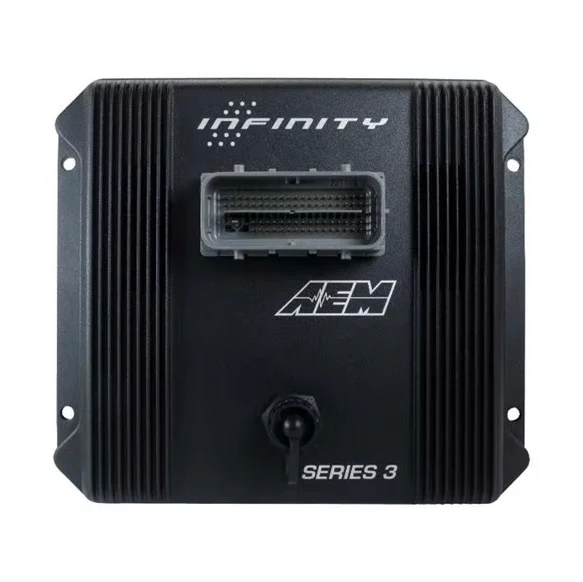

AEM Electronics Infinity Series 3 ECUs 30-7113
AEM Electronics Infinity Series 3 ECUs
The Infinity 308 (PN 30-7113) features two different injector types and two different coil outputs that support three different types of fuel and ignition configurations. For throttle-body-injected (TBI) and GM multi-port fuel injected V8s the Infinity 308 includes a single direct-drive ignition coil output to work with a distributor and a single coil, and 2 peak & hold injector drivers that can drive up to four high-impedance injectors each. Other port injected and single-coil distributed V8 engines like the Ford Windsor can be controlled using the Infinity 308's 8 high impedance injector divers and single direct-drive coil output. For the Chevy LS, the Infinity 308 has 8 high impedance injector drivers and 8 "smart" coil outputs to drive a coil-near-plug ignition system.
AEM Electronics Infinity Series 3 programmable ECUs deliver state-of-the-art engine control for the racing masses at a fraction of the cost of comparable high-end systems. Built around a latest generation 200MHz automotive processor, the Infinity Series 3 is capable of processing 400 MIPS (millions of Instructions per second). These units are available in configurations to support four- to 12- cylinder engines. The Infinity's airflow-based, volumetric efficiency (VE) tuning models simplify start up and speed up the tuning process by eliminating many of the lookup and trim tables necessary in previous generation ECUs. Combined with AEM's industry leading after-purchase support system, including free technical support, the Infinity Series 3 ECUs are the ultimate engine control solution for both professional race teams and weekend track cars.
Key features and benefits:
* Infinity Series 3 enclosure is fully sealed, and the connectors are IP67 rated (dustproof, waterproof to 1 meter) making them suitable for engine bay mounting
* Airflow model based (VE) tuning
* ECU Set Up Wizard simplifies start up
* Flex fuel compatible and multi fuel capable
* Programmable drive by wire, variable cam timing, boost control strategies and nitrous control
* On-the-fly map switching
* Up to 2 internal Lambda air/fuel controllers
* Up to 2 knock sensing circuits
* Programmable traction control
* Data logging up to 64GB, up to 100 channels at 1KHz
* Outputs to 3rd party dashes and data loggers
* AEMnet enabled
* View logs in InfinityTuner or AEMdata software
* Industry leading data transfer speed
* Integrated engine protection strategies
* Password protected maps and more
**All clearance items are sold as FINAL**
