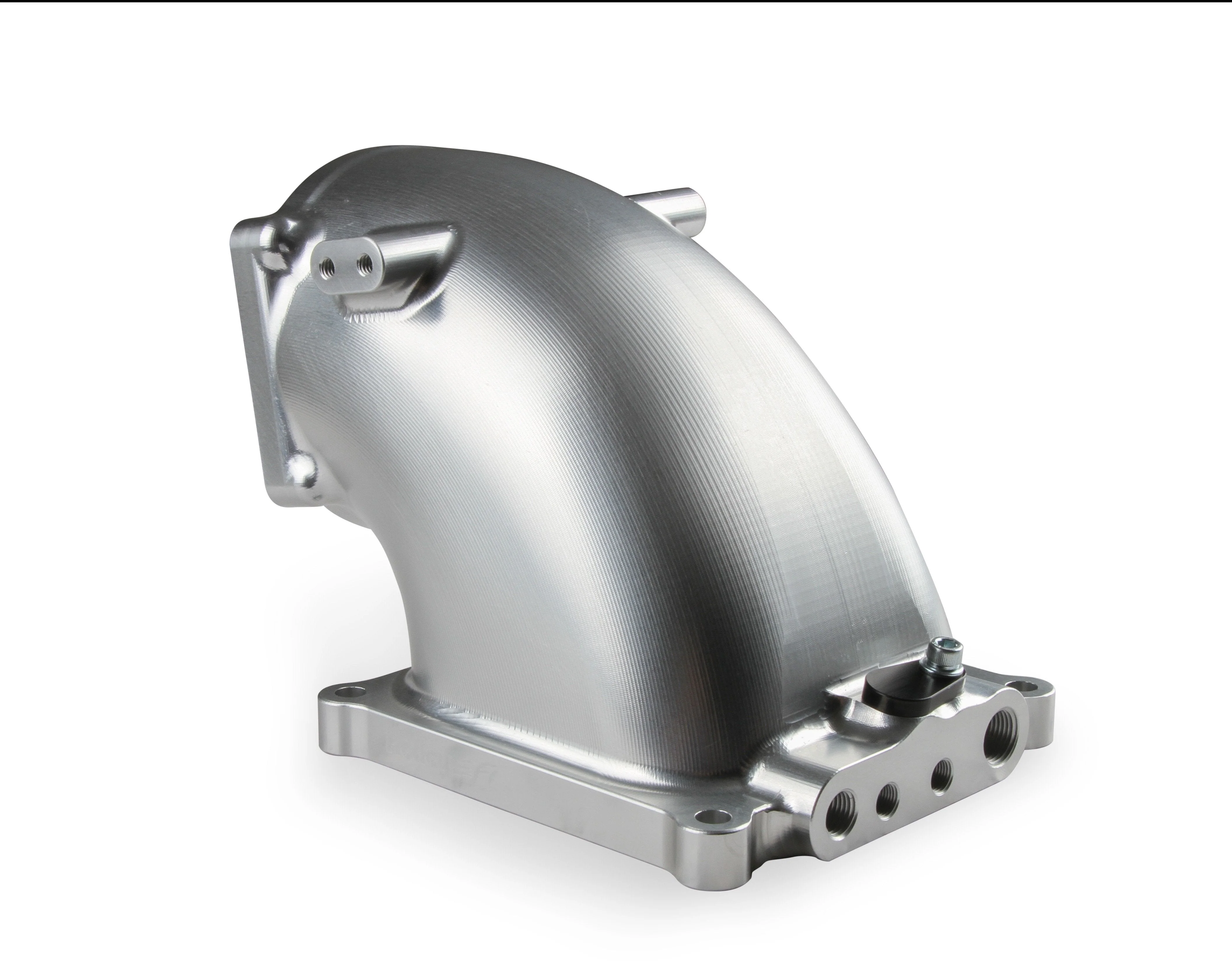

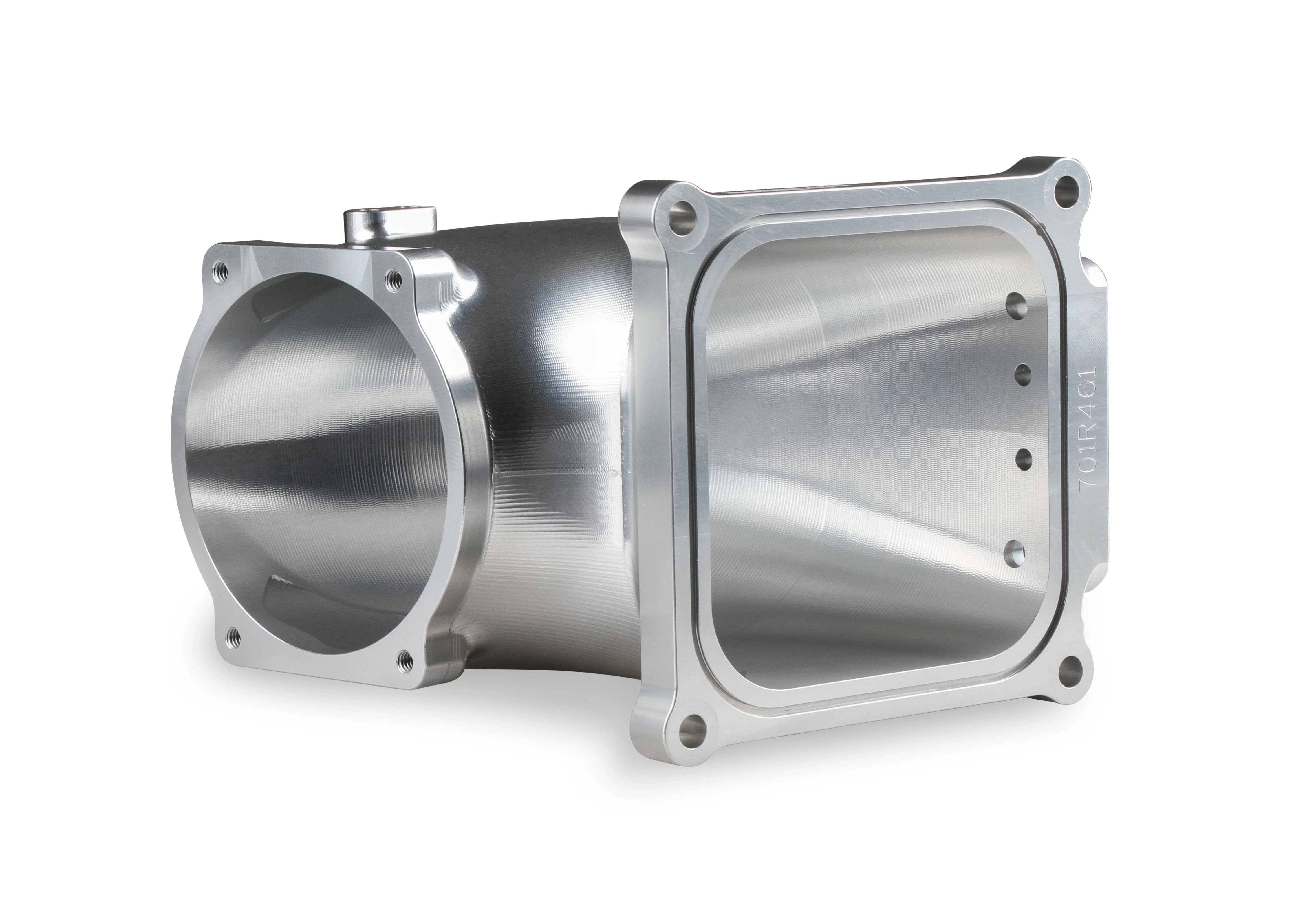

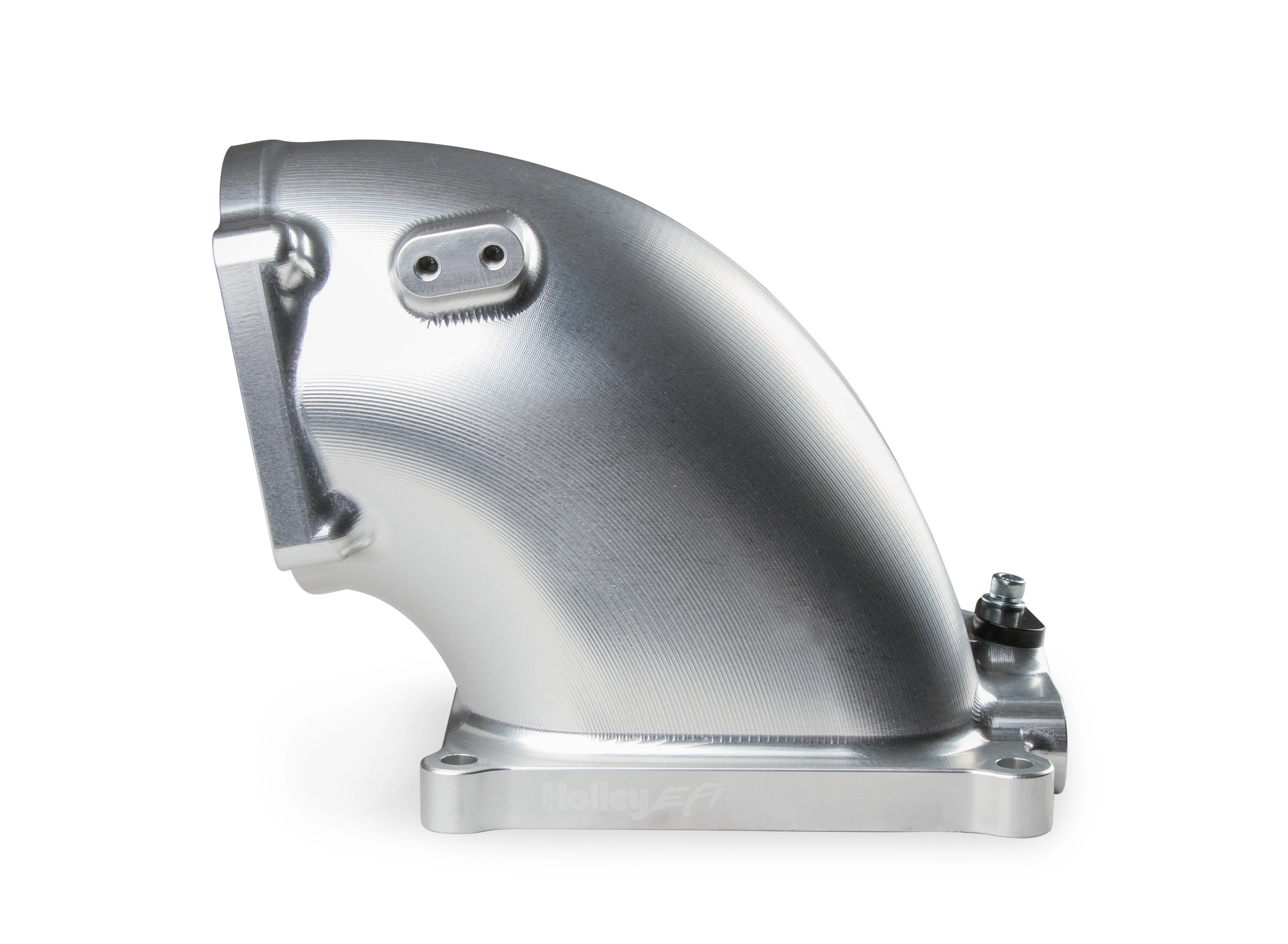

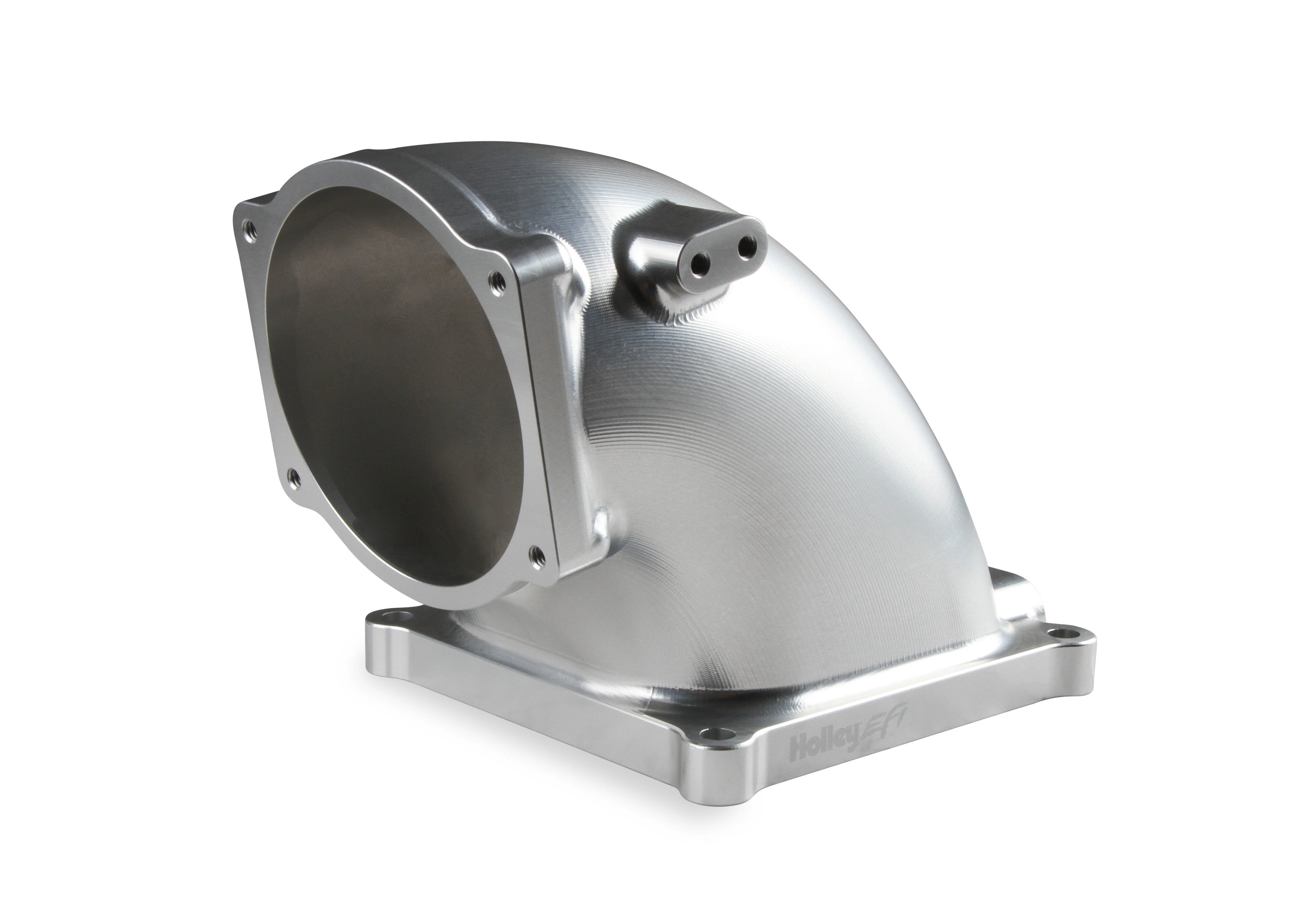

Billet 4500 EFI Throttle Body Intake Elbow-Ls

LS3 style MAP sensor plug

Overview

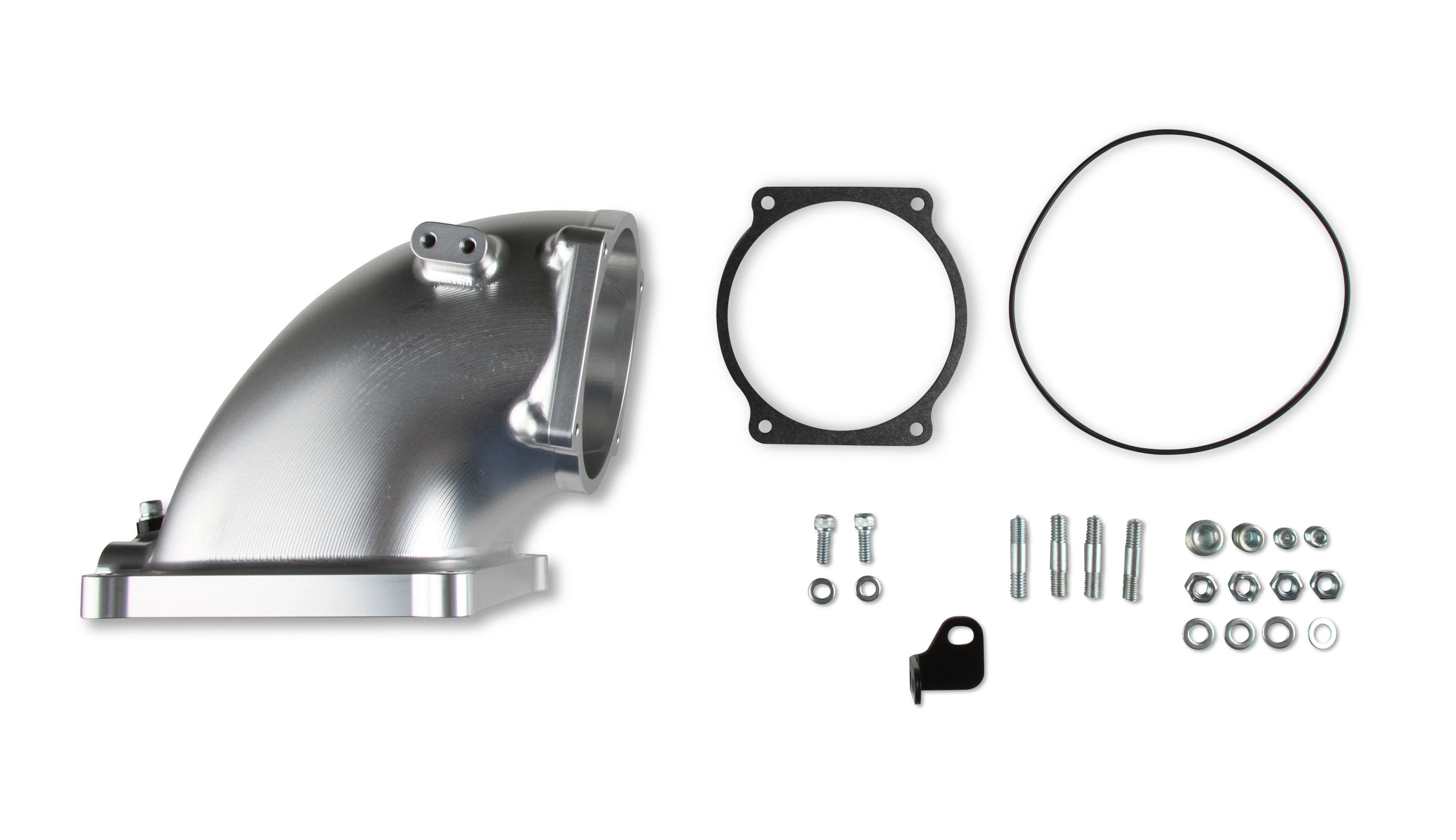

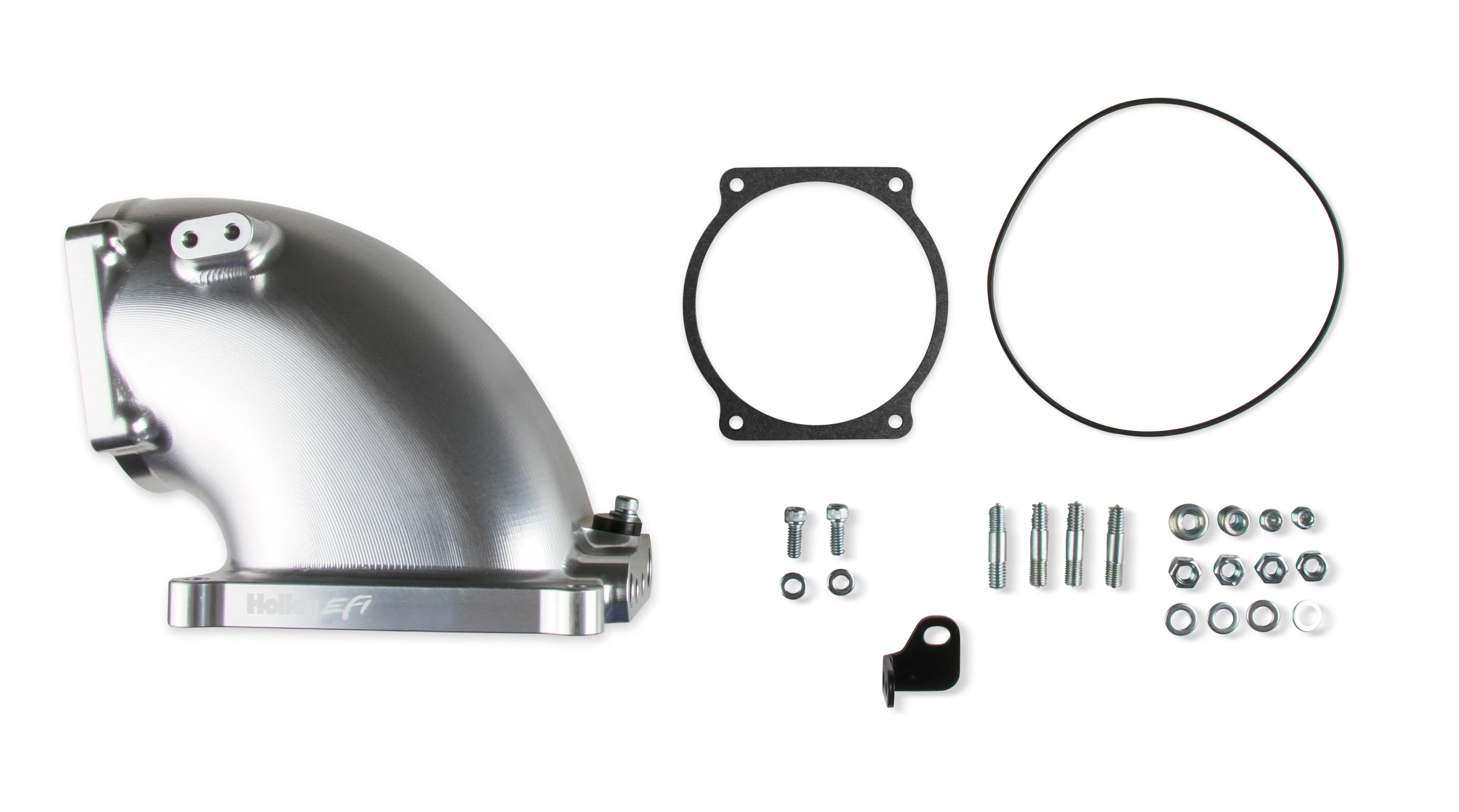

This billet aluminum cover eliminates the MAP Sensor and works with most intake manifolds w/ the LS3 style MAP Sensor. Includes O-ring seal and mounting hardware.

Features:

• Fits GM LS Throttle Bodies

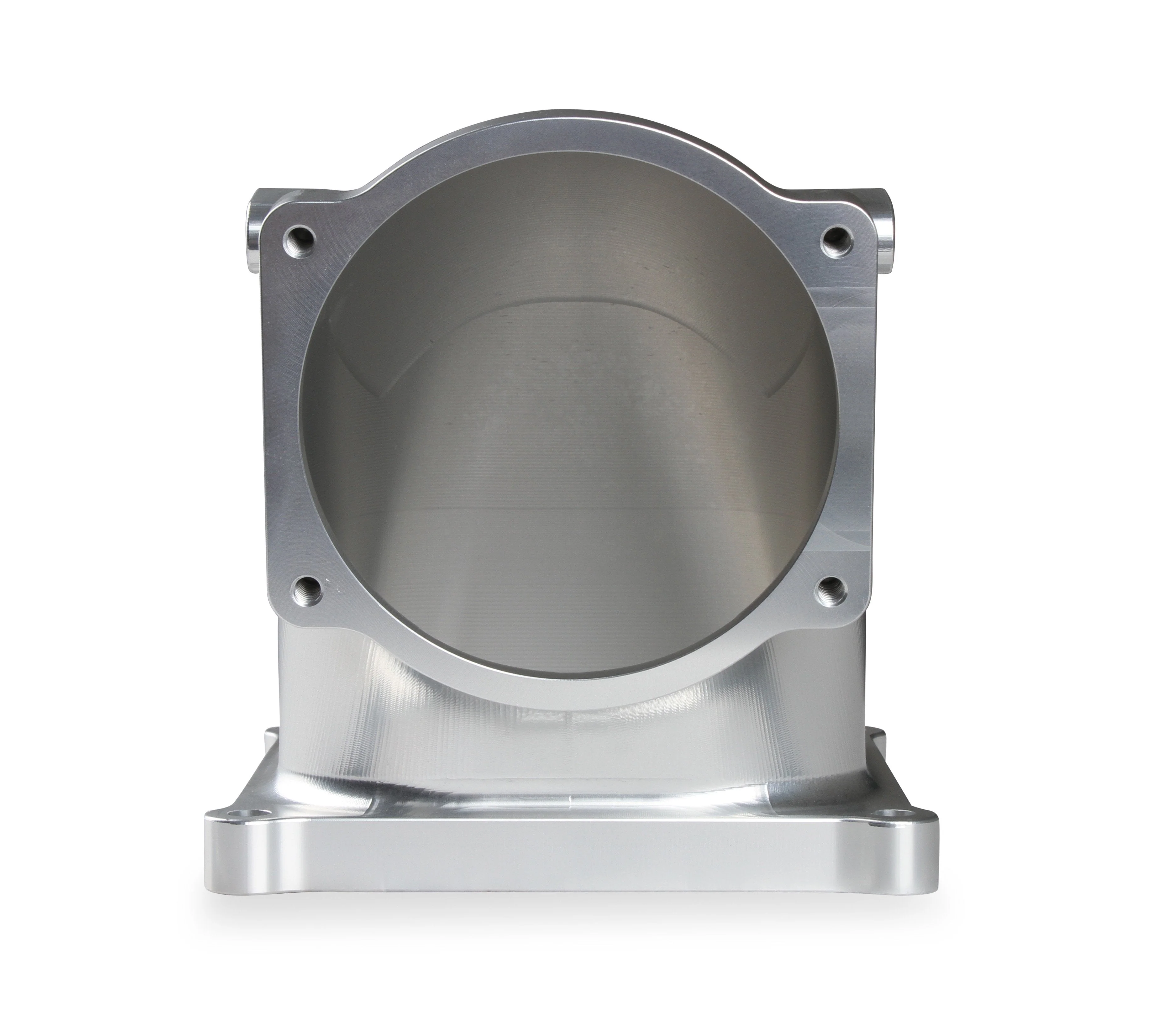

• 105mm Throttle Body Opening - 100 Mounting Angle
• Fits Intakes w/ 4500 Flange- designed to use the included o-ring for sealing
• The 4500 square flange pattern allows Forward, Sideways or Rearward Throttle Body Mounting
• LS3 Style MAP Sensor Mounting
• (4) vacuum ports, MAP sensor port,

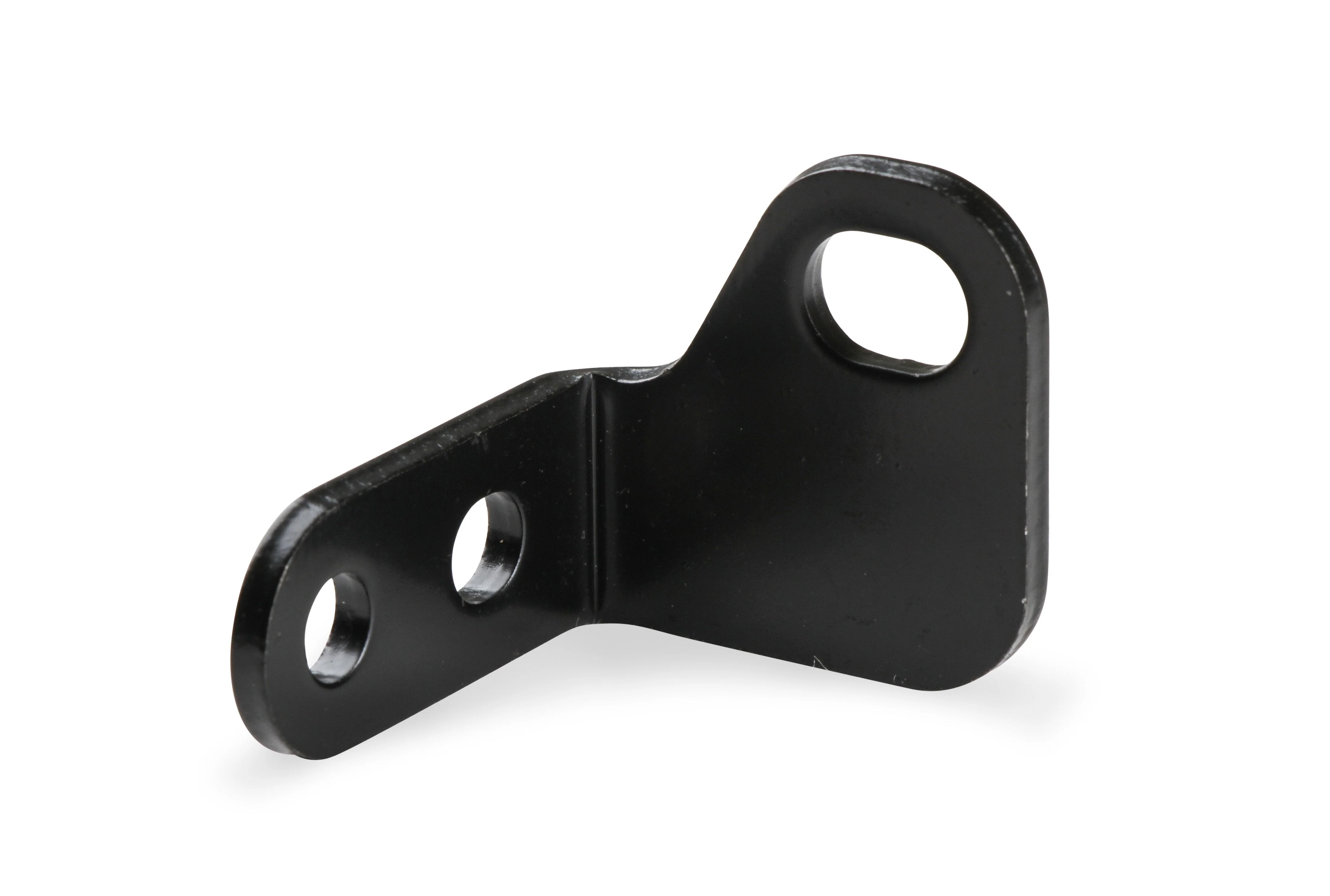

• (2) Throttle Linkage Mounting Bosses
• Machined Billet finish
• Overall Height 6.38???

Details:

• Color: Silver
• Construction: Cast
• Engine: GM LS1/LS2/LS6
• Finish: Silver
• Fuel System Type: EFI
• Material: Billet Aluminum
• Throttle Bore: 105mm
• Warranty: Limited 90 Day

Links
Instruction Sheet
