Holley EFI Fuel Level Gauge

Vacuum / Boost - Standard 2-1/16" size - 30" Hg - 30 PSI - CAN - Black Face - Black Bezel

Overview

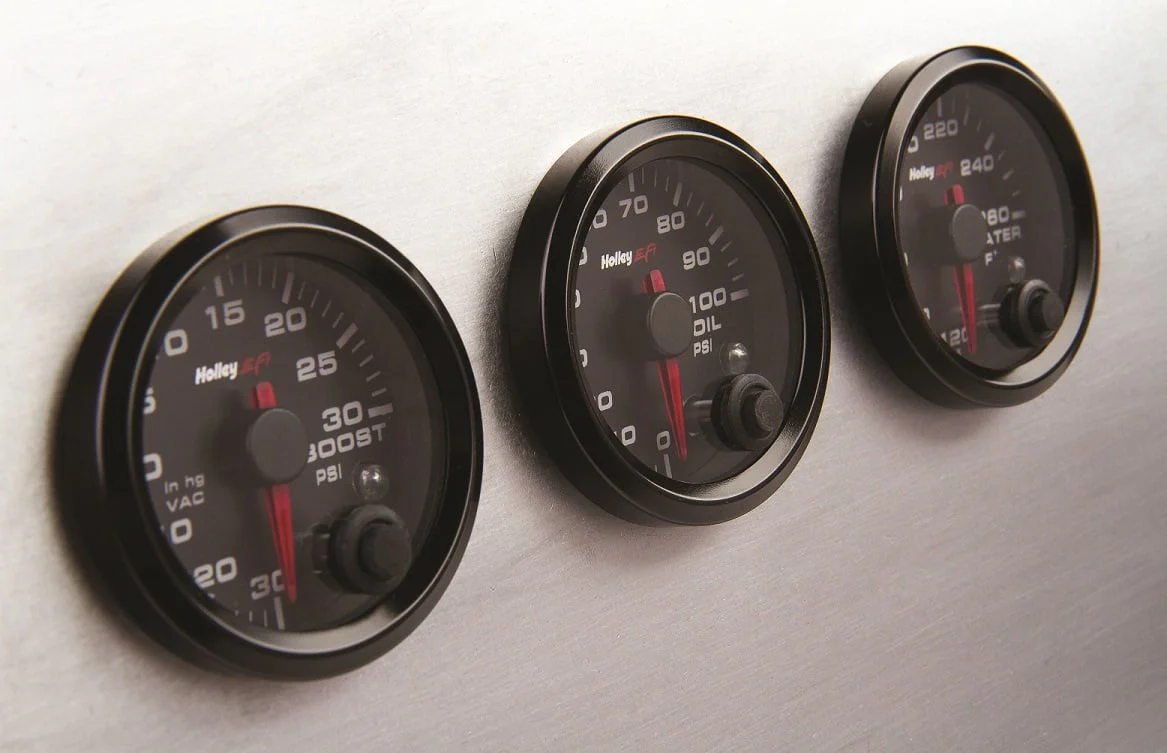

These analog-style gauges are designed specifically for use with Holley EFI systems. They are compatible with all Terminator, HP, and Dominator ECU's, allowing them to be installed in a variety of Holley EFI equipped vehicles. CAN-bus communication allows the gauges to daisy chain using the included stereo cables, making installation quick and clean. The required gauge module (P/N 554-130) allows plug and play communication between the ECU and gauges, through a one-wire ECU connection. Can be used with Sniper ECUs when used in conjunction with module part # 554-130.

Boost ICF MUST be active for this gauge to function! Easy to install - One plug and play gauge module (P/N 554-130) is required per set of CAN gauges. User can daisy chain as many gauges as they choose; all gauge data supplied through a one-wire ECU connection.

Features:

• Wires directly to sending unit, programmable for factory and aftermarket sending units with a range anywhere within 0-300ohms

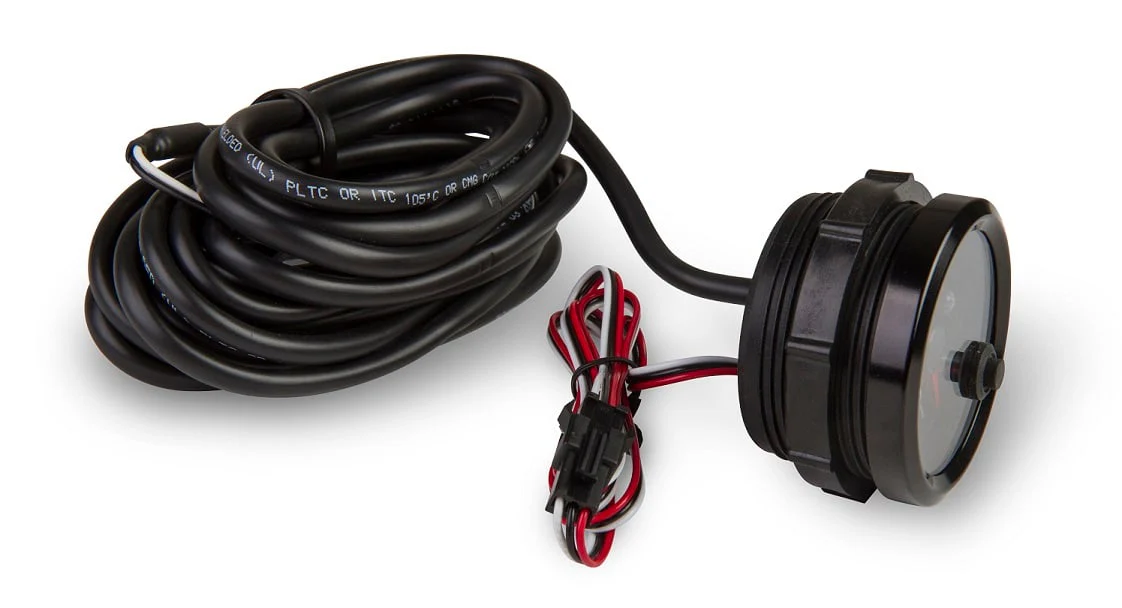

• Includes 12' shielded cable to connect directly to sending unit
• 270 sweep pointer from 6 to 3 o??????clock makes gauges easy to read at a glance
• Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
• Adjustable LED warning light allows user to set low trigger points
• LED warning light brightness can be configured for both day and night
• Spin lock ring threads to back of gauge case for simple and secure gauge mounting
• CNC machined billet aluminum bezels with anodized finish ???? Bezels are threaded for easy replacement
• Multiple bezel options available separately ???? User can customize the gauges to their preference

Details:

• Gauge Background Color: Black
• Gauge Type: Fuel Level
• Size: 2-1/16"
