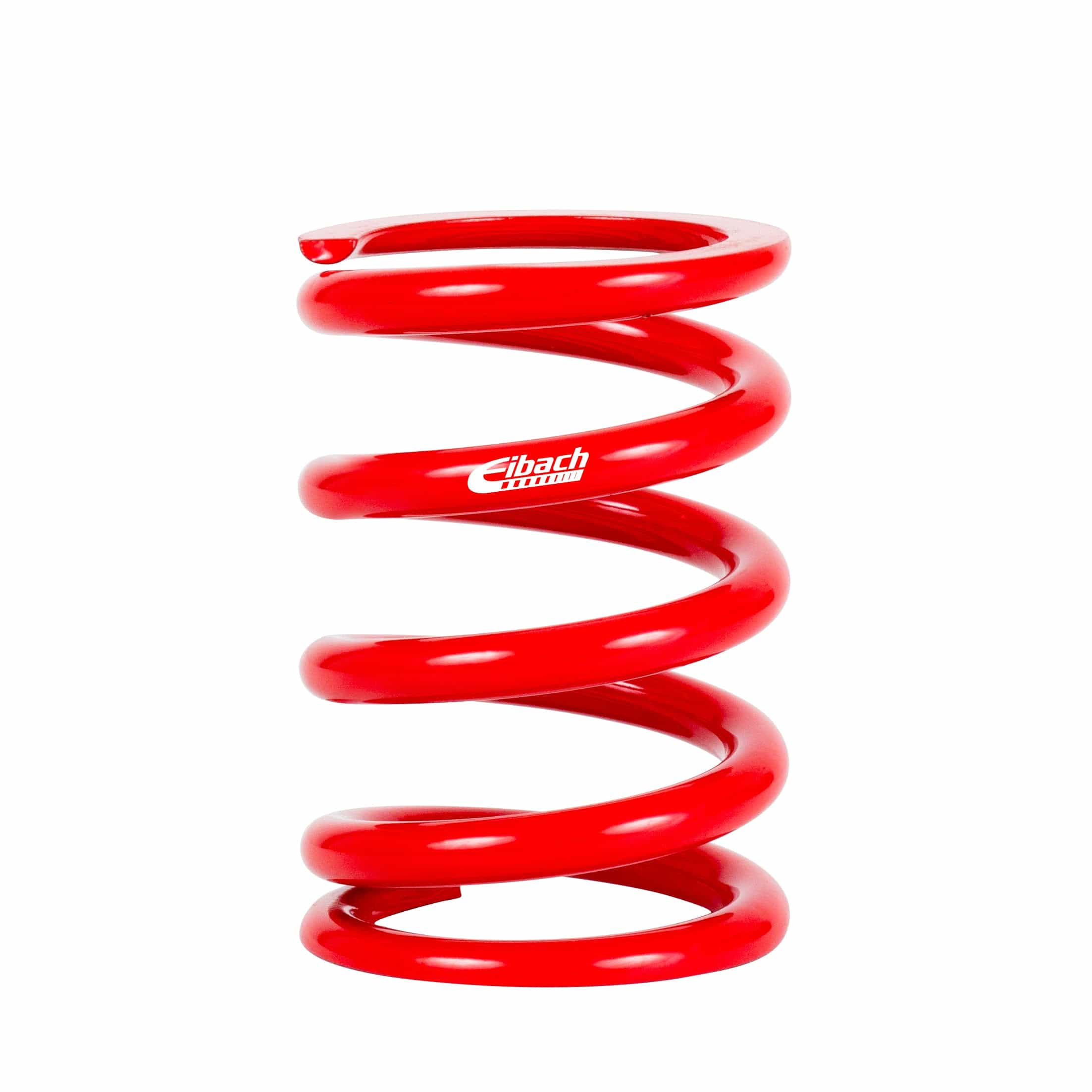

Eibach Conventional Pull Bar Single Rear Coil Spring - 600 / 1200 lbs/in Rate
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Standard Features
- Progressive Rate for optimized vehicle traction
- Outside Diameter of 5.00"
- Maximum Travel in Combination with Smallest Block Heights
- Made By Eibach in the U.S.A.
Specifications
| Part Number | 0675.500.1200 |
| Part Name | Coil Spring |
| Length | 6.75 in. |
| Diameter | 5.00 O.D. |
| Spring Rate | 600 / 1200 lbs/in |
| Block Height | 3.5 in. |
| Travel | 3.25 in. |
| Block Load | 3895 lbs. |
| Spring Type | Conventional |
| Individual | Motorsport Spring |
| Notes | Without QuadraSteer |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Eibach Conventional Pull Bar Single Rear Coil Spring - 600 / 1200 lbs/in Rate
Eibach Conventional Pull Bar Single Rear Coil Spring - 600 / 1200 lbs/in Rate
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Standard Features
- Progressive Rate for optimized vehicle traction
- Outside Diameter of 5.00"
- Maximum Travel in Combination with Smallest Block Heights
- Made By Eibach in the U.S.A.
Specifications
| Part Number | 0675.500.1200 |
| Part Name | Coil Spring |
| Length | 6.75 in. |
| Diameter | 5.00 O.D. |
| Spring Rate | 600 / 1200 lbs/in |
| Block Height | 3.5 in. |
| Travel | 3.25 in. |
| Block Load | 3895 lbs. |
| Spring Type | Conventional |
| Individual | Motorsport Spring |
| Notes | Without QuadraSteer |
Original: $90.00
-70%$90.00
$27.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Standard Features
- Progressive Rate for optimized vehicle traction
- Outside Diameter of 5.00"
- Maximum Travel in Combination with Smallest Block Heights
- Made By Eibach in the U.S.A.
Specifications
| Part Number | 0675.500.1200 |
| Part Name | Coil Spring |
| Length | 6.75 in. |
| Diameter | 5.00 O.D. |
| Spring Rate | 600 / 1200 lbs/in |
| Block Height | 3.5 in. |
| Travel | 3.25 in. |
| Block Load | 3895 lbs. |
| Spring Type | Conventional |
| Individual | Motorsport Spring |
| Notes | Without QuadraSteer |
