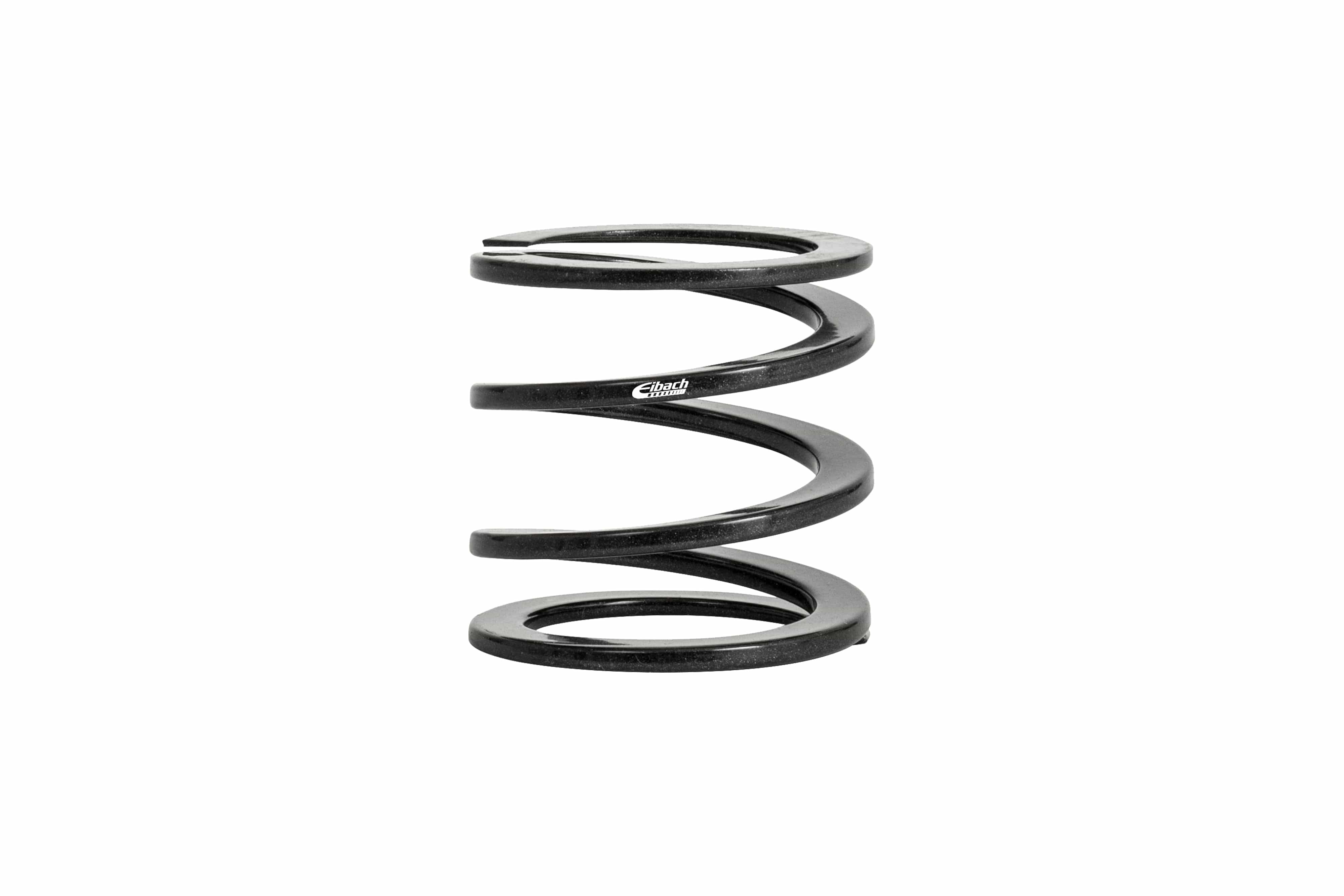

Eibach ERS Main-Metric Linear Tender Single Coil Spring - 171 lbs/in Rate, 1.5 in. Block Height, 3.98 in. Length
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Standard Features
- Provides a Softer Initial Rate When Paired with a Main Spring
- Available in Linear or Progressive Rates
- Each Spring Individually Tested
- Highest Linearity and Guaranteed Consistency
Specifications
| Part Number | 60-60-0030 |
| Part Name | Coil Spring |
| Length | 3.98 in. |
| Diameter | 2.36 I.D. |
| Spring Rate | 171 lbs/in |
| Block Height | 1.5 in. |
| Travel | 2.48 in. |
| Block Load | 422 lbs. |
| Spring Type | Linear |
| Individual | Metric Coilover Spring |
| Notes | Without QuadraSteer |
