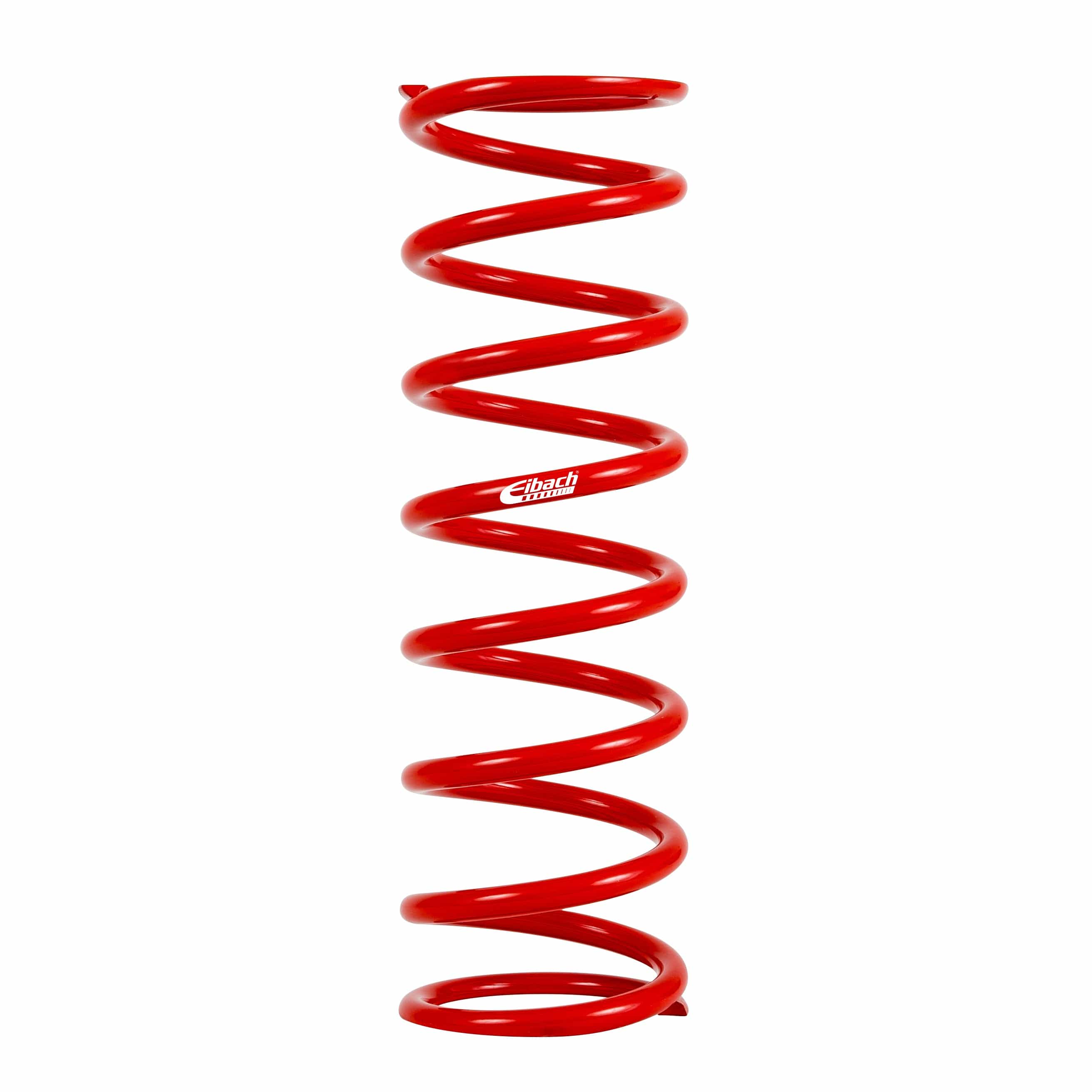

Eibach ESS Speedway Conventional Single Rear Coil Spring - 75 lbs/in Rate
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Standard Features
- Ultra Lightweight for Reduced Unsprung Mass
- Maximum Travel in Combination with Smallest Block Heights
- Lowest Side Loads with Load Center Ideally Located Relative to the Spring Axis
- Precision Tolerances - The Tightest in the Industry
- Each Spring Individually Tested and Rated
Specifications
| Part Number | 2000.500.0075 |
| Part Name | Coil Spring |
| UPC | 00803050485465 |
| Length | 20 in. |
| Diameter | 5.00 O.D. |
| Spring Rate | 75 lbs/in |
| Block Height | 4.25 in. |
| Travel | 15.75 in. |
| Block Load | 1180 lbs. |
| Spring Type | Conventional |
| Individual | Conventional Race Spring |
| Notes | Without QuadraSteer |
