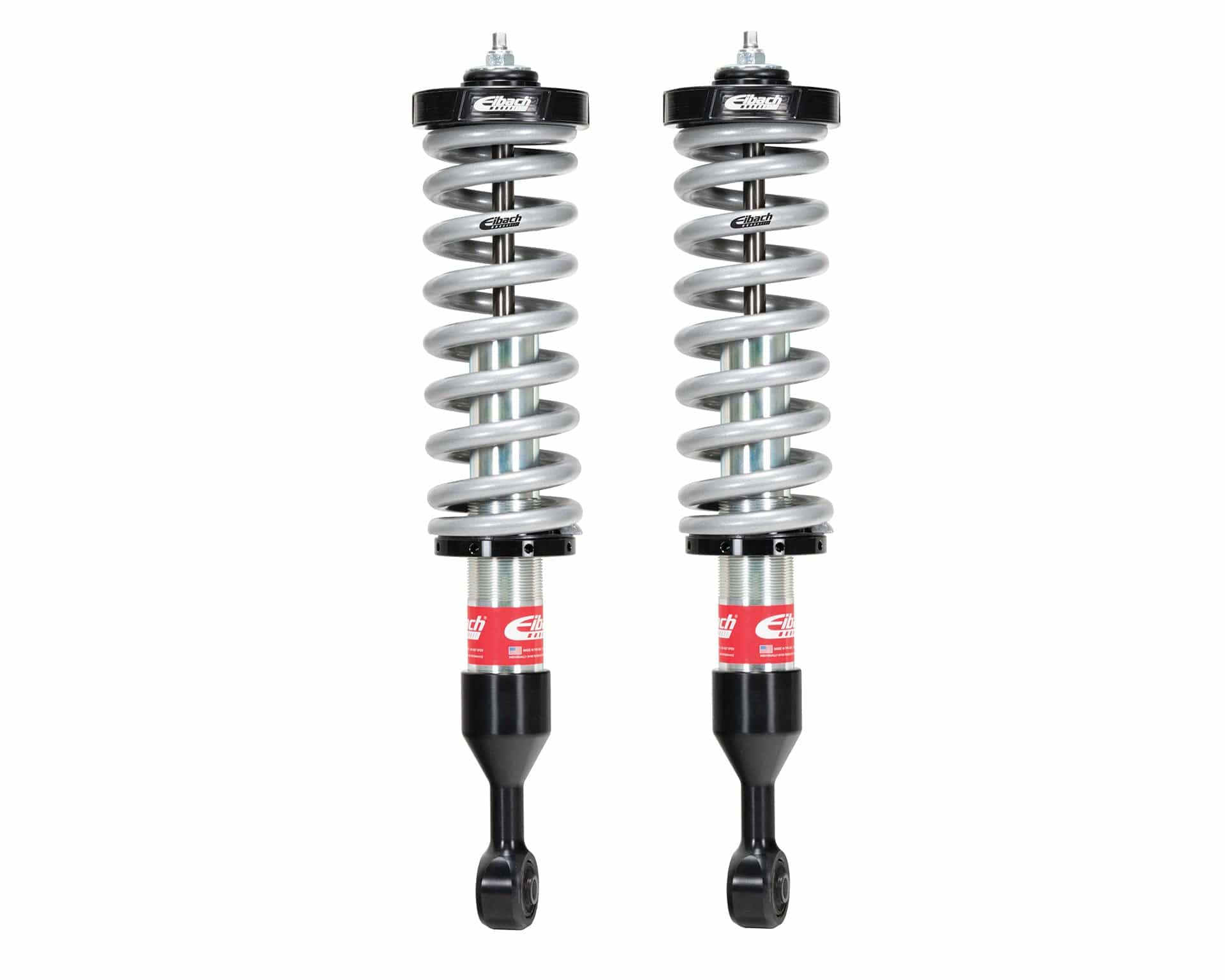

Eibach's PRO-TRUCK Coilovers 2.0 for the 2003-2009 Lexus GX470 4WD features threaded bodies for fine-tuning ride height and improved damping performance delivering maximum off-road capability. Developed utilizing our extended-travel monotube design and variable force valving, Eibach PRO-TRUCK COILOVER 2.0 delivers control during on-road transit and compliance for maximum traction on the trails.

Weight Compensation

The adjustable threaded spring perch allows the acco mmodation of additional weight and maximizes clearance. This is important when trucks are equipped with heavy gear such as metal front bumpers, winches, lights, skid plates, and more.

Variable Force Valving

Designed to provide a controlled comfortable ride on road, and as force and piston speeds increase off-road our proprietary valve stack activates to control the vehicle over large bumps and g-outs.

Standard Features

• Lift heights ranging from 2-4" depending on application.

• Threaded spring perch for fine height adjustment

• Developed to provide balanced ride quality and control, both on and off-road
  Increased travel and ground clearance

• Monotube damper design

• Pre-Assembled, Factory Direct Replacement Front Coilovers - No Additional Parts Required. Sold in Pairs.

• Adjustable Threaded Spring Perch to Acco mmodate Increased Loads and
• Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.

• Anodized 6061-T6 Billet Aluminum Mounts, 46 mm Piston, Monotube Design with
• Nitrogen Filled Variable Force Valving.

• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.

• Engineered, Tested and Manufactured by Eibach in the U.S.A.

• Limited Lifetime Warranty


Downloads

• Installation Instructions (PDF) - D3911.pdf

Specifications

Vehicle Fitment

• 2003 Lexus GX470 4WD
• 2004 Lexus GX470 4WD
• 2005 Lexus GX470 4WD
• 2006 Lexus GX470 4WD
• 2007 Lexus GX470 4WD
• 2008 Lexus GX470 4WD
• 2009 Lexus GX470 4WD
