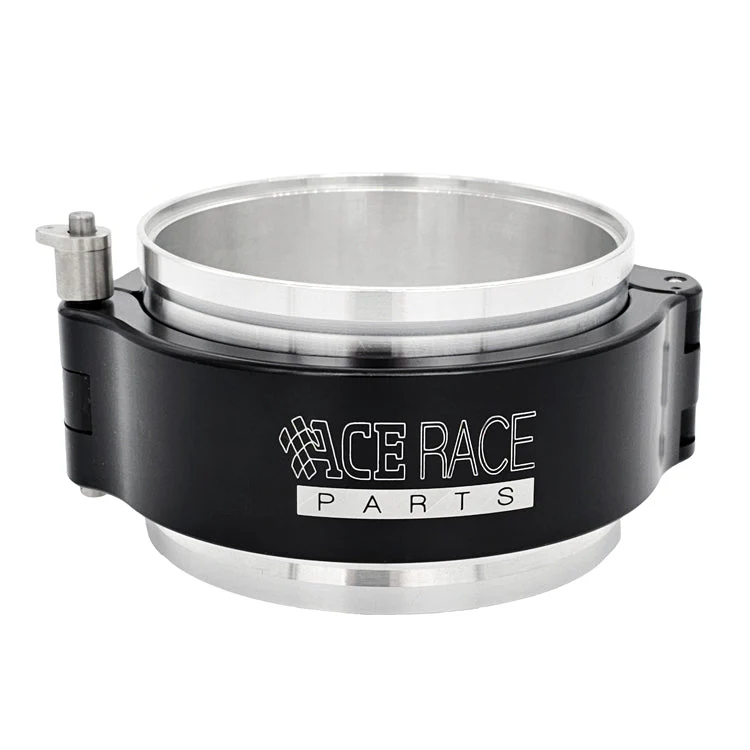

HD Clamp Assembly for 2.000" OD Tubing - Black Clamp, Aluminum/Stainless Flanges
HD CLAMP ASSEMBLY FEATURING ONE ALUMINUM AND ONE STAINLESS FLANGE!
The Ace Race Parts brand of HD Clamp Assemblies are the perfect choice for pressurized air applications, like turbo intake charge piping. Allowing for up to 12 degrees of axial and angular deflection, our HD Clamp Assemblies are able to withstand harsh vibrations and lateral misalignment in the most extreme applications. Featuring a burst pressure rating of 800 psi, our HD Clamp Assemblies are able to provide a leak-free connection in applications that have operating temperatures as high as 400°F.
PRODUCT HIGHLIGHTS:
- Burst Pressure Rating: 800 psi
- Temperature Rating: 400°F / 204°C
- Axial Movement, Angular Deflection: Up to 12°
- Full 6061 Aluminum Billet Construction
- Quick Release Locking Pin
WHAT'S IN THE BOX:

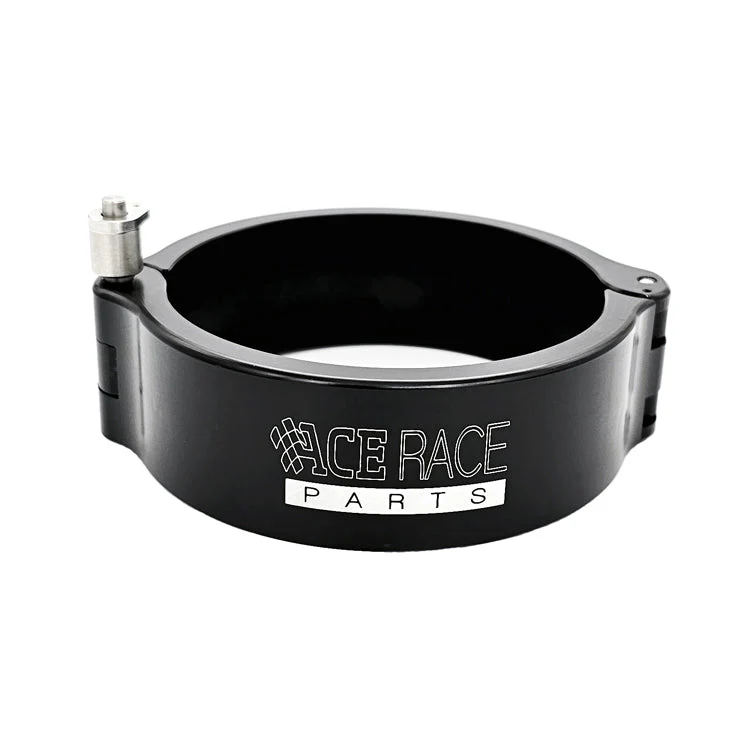

- One (1) 6061 Aluminum Clamp, Black Anodized
- One (1) Quick Release style Clamp Locking Pin

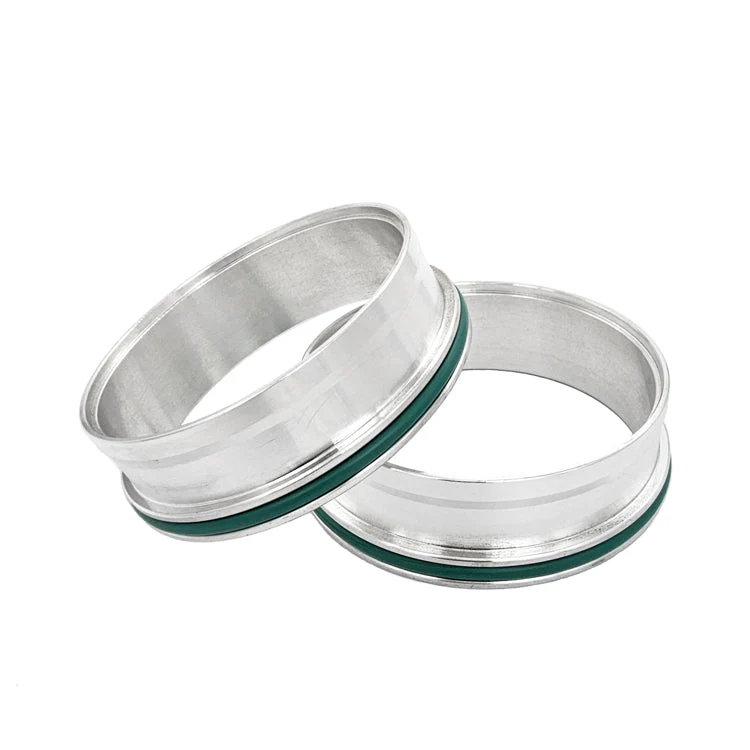

- One (1) Aluminum Weld Flange
- One (1) Stainless Weld Flange
- Two (2) FKM High Temperature O-Rings (Green Fluororubber)

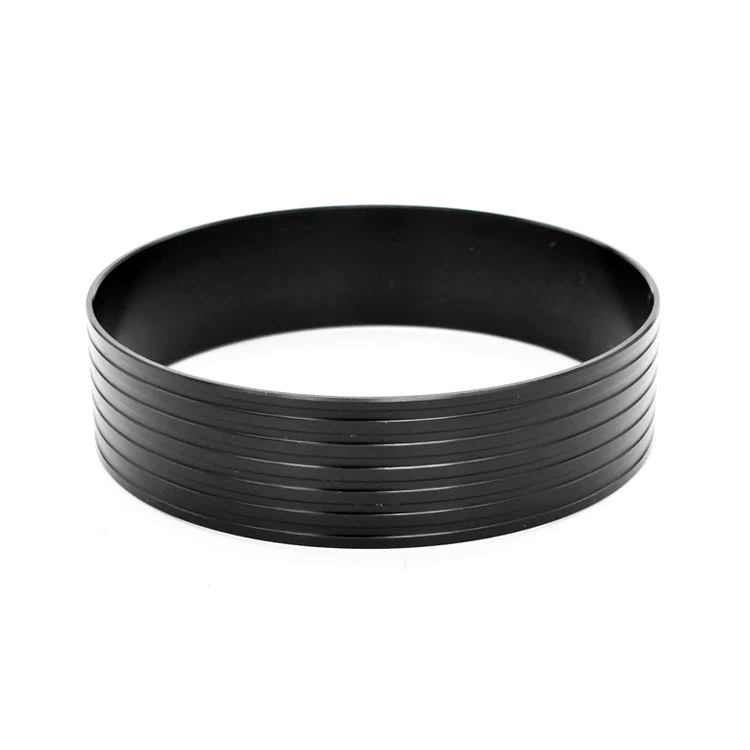

- One (1) Aluminum Union Sleeve, Hard Anodized
Product Information
Product Information
Shipping & Returns
Shipping & Returns
HD Clamp Assembly for 2.000" OD Tubing - Black Clamp, Aluminum/Stainless Flanges
HD Clamp Assembly for 2.000" OD Tubing - Black Clamp, Aluminum/Stainless Flanges
HD CLAMP ASSEMBLY FEATURING ONE ALUMINUM AND ONE STAINLESS FLANGE!
The Ace Race Parts brand of HD Clamp Assemblies are the perfect choice for pressurized air applications, like turbo intake charge piping. Allowing for up to 12 degrees of axial and angular deflection, our HD Clamp Assemblies are able to withstand harsh vibrations and lateral misalignment in the most extreme applications. Featuring a burst pressure rating of 800 psi, our HD Clamp Assemblies are able to provide a leak-free connection in applications that have operating temperatures as high as 400°F.
PRODUCT HIGHLIGHTS:
- Burst Pressure Rating: 800 psi
- Temperature Rating: 400°F / 204°C
- Axial Movement, Angular Deflection: Up to 12°
- Full 6061 Aluminum Billet Construction
- Quick Release Locking Pin
WHAT'S IN THE BOX:
- One (1) 6061 Aluminum Clamp, Black Anodized
- One (1) Quick Release style Clamp Locking Pin
- One (1) Aluminum Weld Flange
- One (1) Stainless Weld Flange
- Two (2) FKM High Temperature O-Rings (Green Fluororubber)
- One (1) Aluminum Union Sleeve, Hard Anodized
Original: $125.99
-70%$125.99
$37.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HD CLAMP ASSEMBLY FEATURING ONE ALUMINUM AND ONE STAINLESS FLANGE!
The Ace Race Parts brand of HD Clamp Assemblies are the perfect choice for pressurized air applications, like turbo intake charge piping. Allowing for up to 12 degrees of axial and angular deflection, our HD Clamp Assemblies are able to withstand harsh vibrations and lateral misalignment in the most extreme applications. Featuring a burst pressure rating of 800 psi, our HD Clamp Assemblies are able to provide a leak-free connection in applications that have operating temperatures as high as 400°F.
PRODUCT HIGHLIGHTS:
- Burst Pressure Rating: 800 psi
- Temperature Rating: 400°F / 204°C
- Axial Movement, Angular Deflection: Up to 12°
- Full 6061 Aluminum Billet Construction
- Quick Release Locking Pin
WHAT'S IN THE BOX:
- One (1) 6061 Aluminum Clamp, Black Anodized
- One (1) Quick Release style Clamp Locking Pin
- One (1) Aluminum Weld Flange
- One (1) Stainless Weld Flange
- Two (2) FKM High Temperature O-Rings (Green Fluororubber)
- One (1) Aluminum Union Sleeve, Hard Anodized
