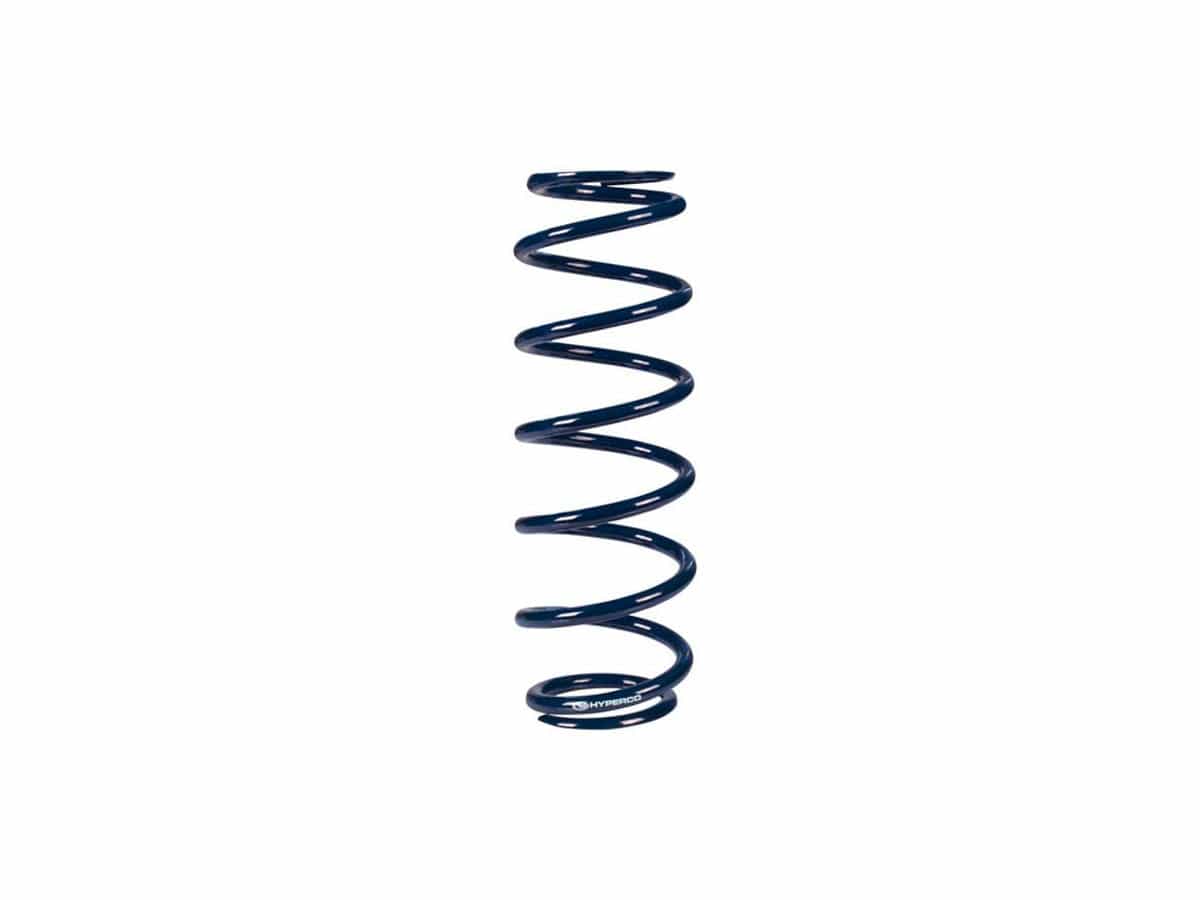

Hyperco Ultra High Travel (UHT) Coilover Spring - ID: 3"
Hyperco Ultra High Travel springs are designed specifically for light rate / high travel coil-over applications, such as dirt and pavement racing. The UHT design meets the requirements of soft spring and big bar set-ups, and remains consistent in free length and installed height. The Ultra High Travel design features a larger “body bulge” over Hyperco’s standard OBD design, which allows for additional deflection, rate linearity, and resistance to bowing.
Note: This product is sold as one (1) individual spring.
About Hyperco Springs
Hyperco is a supplier of precision-engineered, high-performance suspension springs and related components supporting the Motorsports, Street Performance, and Off-Road/Powersports markets. Our stock and custom suspension products improve the total performance, aesthetics, and durability of your ride!
Specifications
| SKU | Series - ID | Free Length (in) | Rate (lbs/in) | Rate Type | Deflection (in) | Load (lb) | Outside Diameter (in) | Solid Height (in) |
|---|---|---|---|---|---|---|---|---|
| 14E0140UHT | E - 3 | 14 | 140 | Single | 10.551 | 1477 | 4.701 | 3.449 |
| 14E0160UHT | E - 3 | 14 | 160 | Single | 10.44 | 1670 | 4.643 | 3.56 |
| 14E0180UHT | E - 3 | 14 | 180 | Single | 10.307 | 1855 | 4.737 | 3.693 |
| 14E0200UHT | E - 3 | 14 | 200 | Single | 10.178 | 2035 | 4.812 | 3.822 |
| 16E0110UHT | E - 3 | 16 | 110 | Single | 12.307 | 1353 | 4.482 | 3.693 |
| 16E0125UHT | E - 3 | 16 | 125 | Single | 12.088 | 1511 | 4.65 | 3.912 |
| 16E0200UHT | E - 3 | 16 | 200 | Single | 11.473 | 2295 | 5.154 | 4.527 |
| 16E0250UHT | E - 3 | 16 | 250 | Single | 11.243 | 2810 | 4.834 | 4.757 |
| 16E0300UHT | E - 3 | 16 | 300 | Single | 10.951 | 3285 | 5.068 | 5.049 |
