LS Hi-Flow Fuel Rail Kit - Includes Hose Fittings - Fits LS1, LS2, LS3, LS6 L99 factory intakes

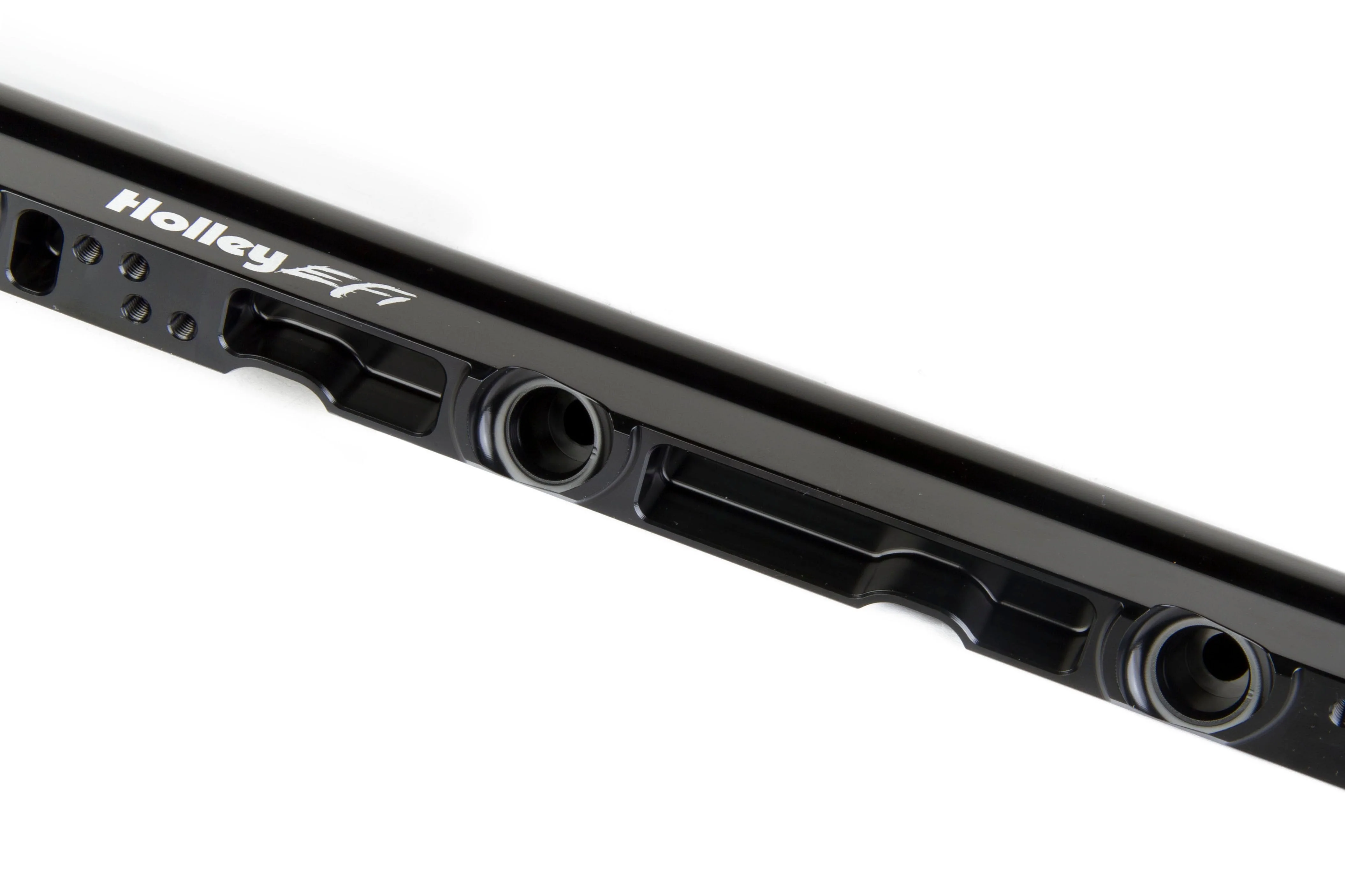

LS Hi-Flow Holley EFI Fuel Rails - Fits LS1, LS2, LS3, LS6 L99 factory intakes

Overview
LS Hi-Flow Holley EFI Fuel Rails - Fits LS1, LS2, LS3, LS6 L99 factory intakes Includes (4) -6 to 3/4"-16 O-ring fittings. Fuel Rail mounting brackets and required mounting hardware.

Note: If this product is to be used with aftermarket (tall) EV1 performance injectors: LS2, LS3, and L99 applications will require taller brackets and adapter O-rings to be used with EV1 injectors. Holley part number 534-212 will have these required parts. LS1 and LS6 application will work with EV1 injectors without any additional parts. Holley part number 534-211 allows easy connection to factory fuel lines.

Features:

• Bright dip, black anodized finish with laser etched EFI logo for long lasting good looks
• 5/8??? diameter fuel passage provides the flow capacity for high horsepower applications
• Fuel rails are machined to accept -8 (3/4-16) O-ring fittings
• Includes (4) -6 to 3/4-16 O-ring adapters

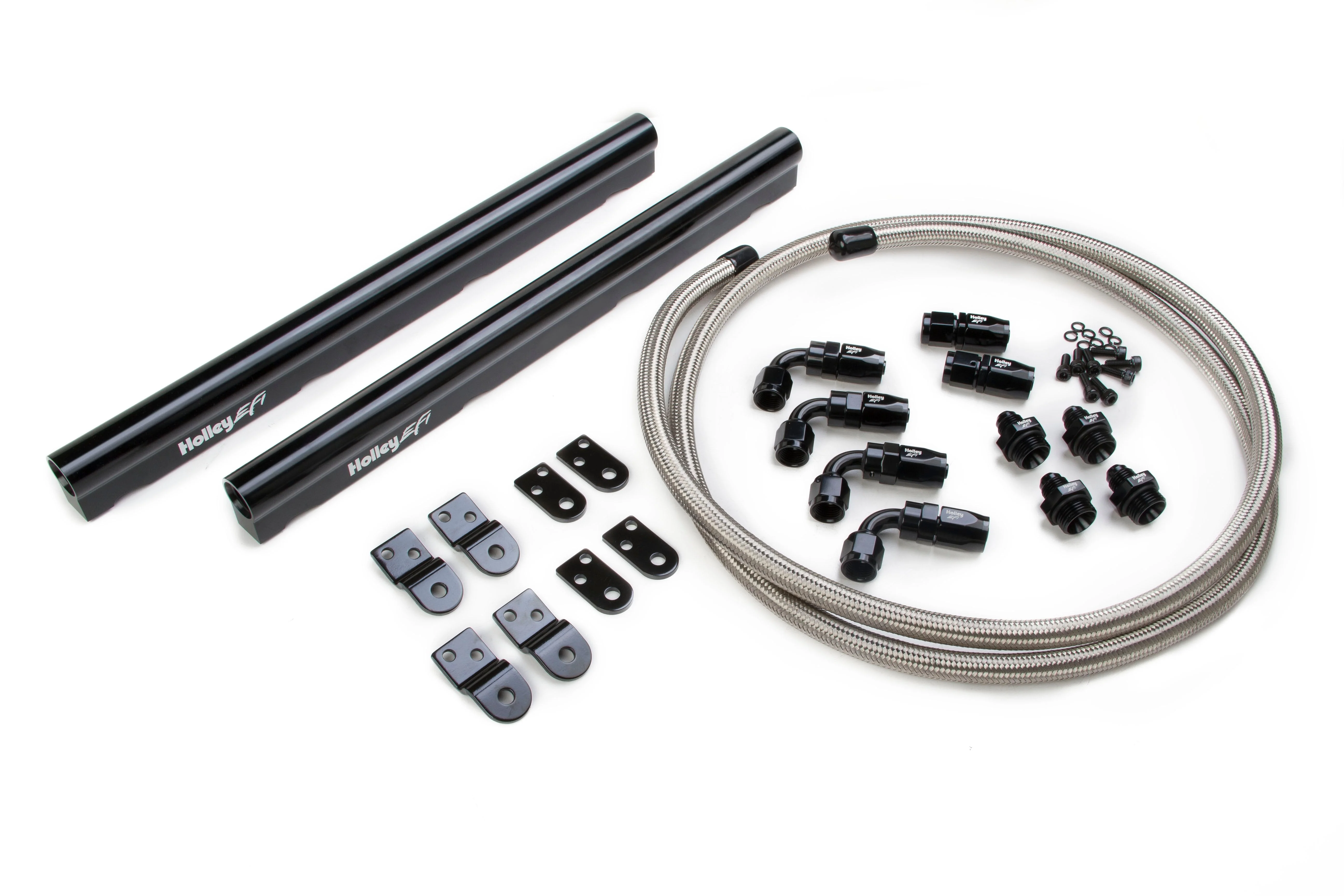

• Same as 534-209, but also includes (6') braided hose, (4) 90?? and (2) straight -6 hose ends

Details:

• Engine: GM LS1/LS2/LS6
