Oil Feed Flange 1/8" FNPT with O-Ring Style Seating Surface (1.500" Bolt Circle / 1/4" Thick)

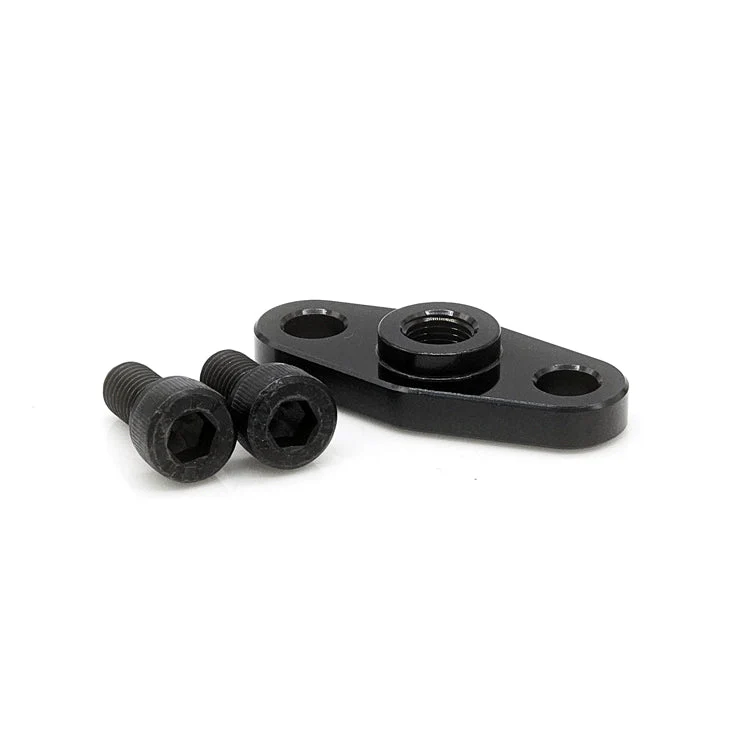

Product image 1

Oil Feed Flange 1/8" FNPT with O-Ring Style Seating Surface (1.500" Bolt Circle / 1/4" Thick)

Oil Feed Flange 1/8" FNPT with O-Ring Style Seating Surface (1.500" Bolt Circle / 1/4" Thick)

The Ace Race Parts brand of Oil Feed Flanges are offered in a wide range of configurations. This particular Oil Drain Flange features an integrated 1/8" Female NPT Thread Outlet, and flange thickness of 1/4", and an O-Ring Style Seating Surface to ensure a leak-free connection at all times. Our oil drain flanges are precision CNC machined from solid 6061-T6 Aluminum billet and features a black hard anodized finish that will stand up to the harshest conditions.

FEATURES

  • 1/8" Female NPT Thread Outlet
  • O-Ring Style Seating Surface
  • Round Bolt Holes with a 1.500" Bolt Circle
  • 1/4" Flange Thickness
  • Precision CNC Machined
  • 6061-T6 Aluminum, Black Hard Anodized Finish
  • Two M8 x 1.25 Button Head Cap Screws

COMPATIBILITY

  • Garrett: G40, G42, G45, GTX40, GTX42, GTX45, GT32, GT40, GT42, GT45
    Generic T3 and T4 Turbos
$5.38

Original: $17.95

-70%
Oil Feed Flange 1/8" FNPT with O-Ring Style Seating Surface (1.500" Bolt Circle / 1/4" Thick)—

$17.95

$5.38

Product Information

Shipping & Returns

Description

The Ace Race Parts brand of Oil Feed Flanges are offered in a wide range of configurations. This particular Oil Drain Flange features an integrated 1/8" Female NPT Thread Outlet, and flange thickness of 1/4", and an O-Ring Style Seating Surface to ensure a leak-free connection at all times. Our oil drain flanges are precision CNC machined from solid 6061-T6 Aluminum billet and features a black hard anodized finish that will stand up to the harshest conditions.

FEATURES

  • 1/8" Female NPT Thread Outlet
  • O-Ring Style Seating Surface
  • Round Bolt Holes with a 1.500" Bolt Circle
  • 1/4" Flange Thickness
  • Precision CNC Machined
  • 6061-T6 Aluminum, Black Hard Anodized Finish
  • Two M8 x 1.25 Button Head Cap Screws

COMPATIBILITY

  • Garrett: G40, G42, G45, GTX40, GTX42, GTX45, GT32, GT40, GT42, GT45
    Generic T3 and T4 Turbos
