ORACLE Part # 1710-001

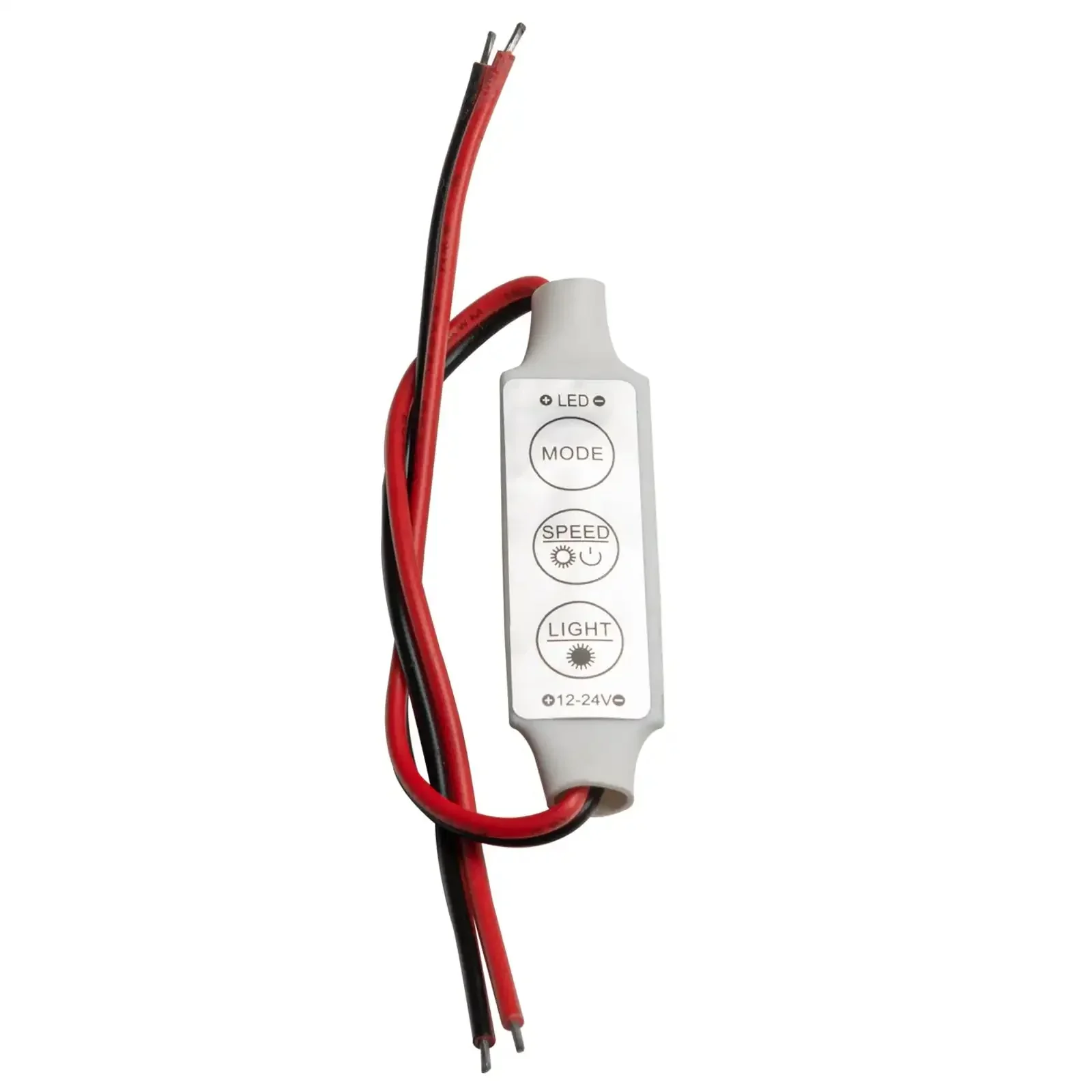

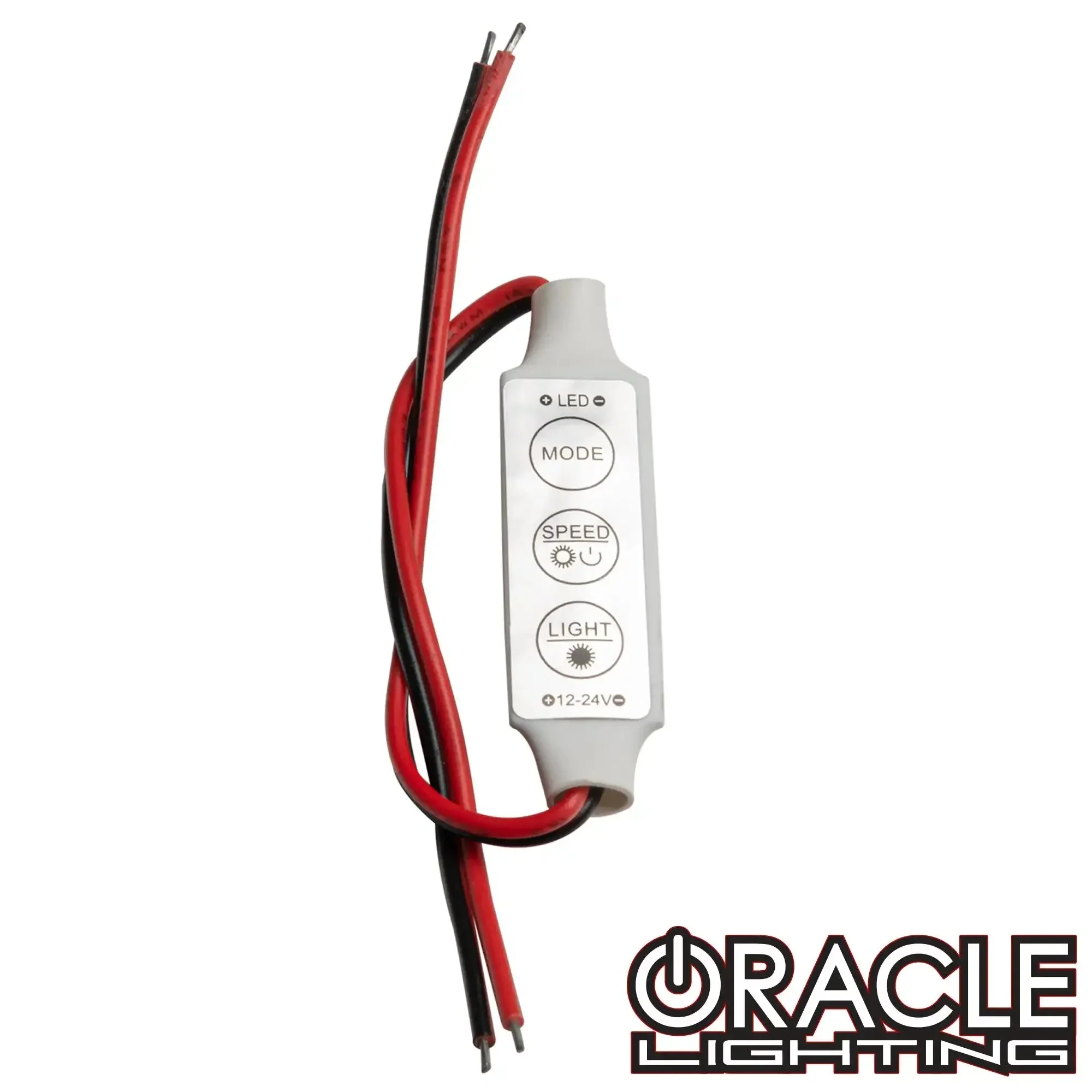

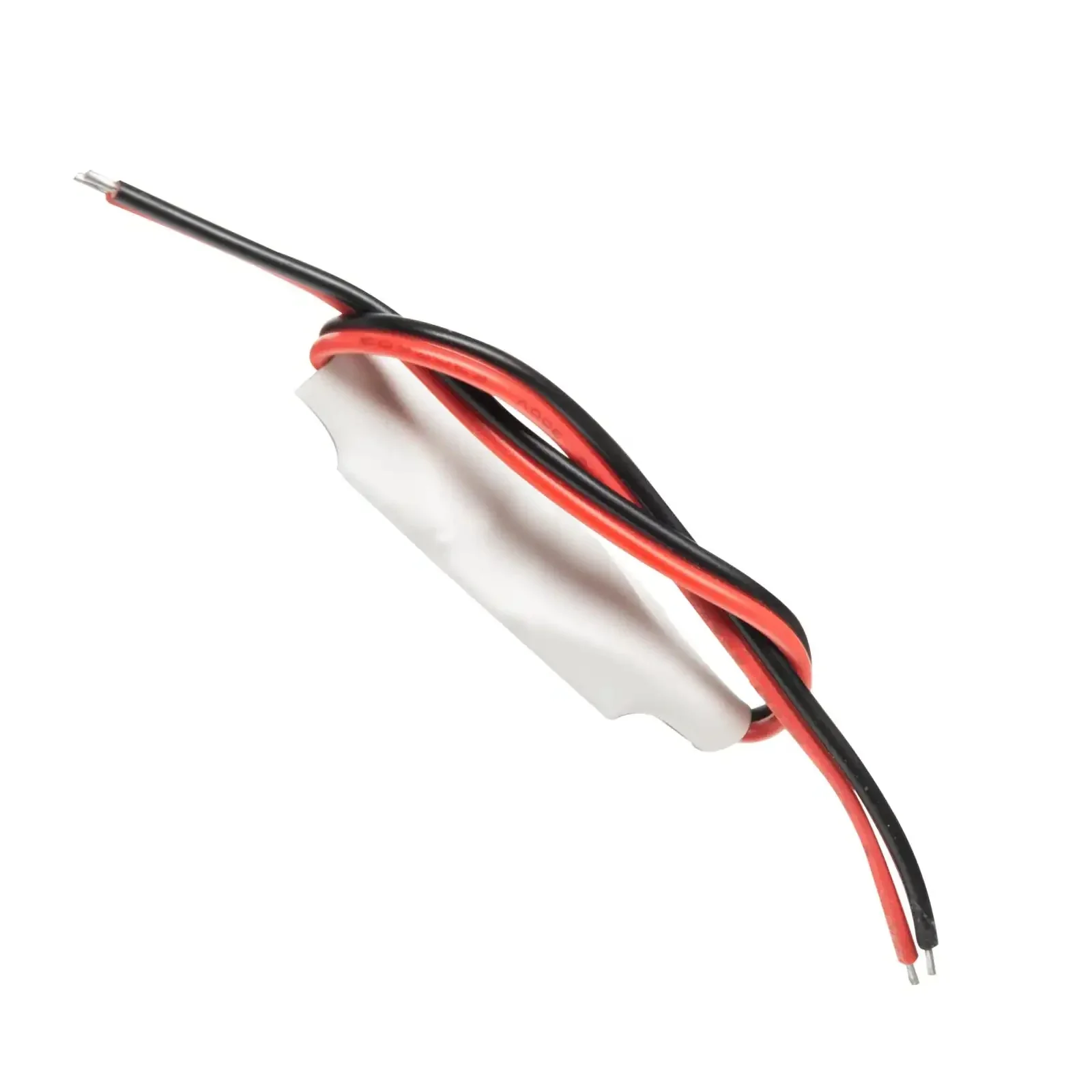

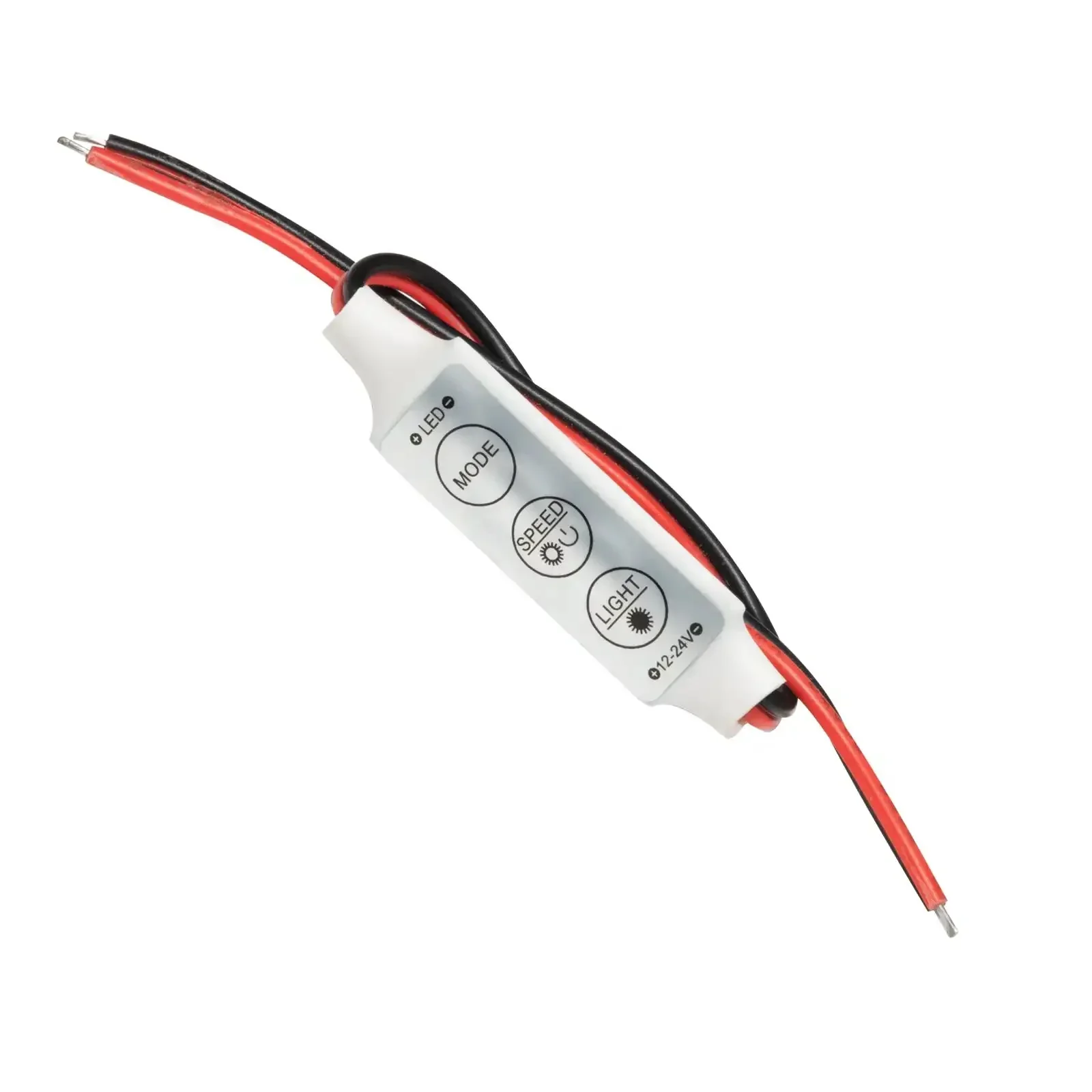

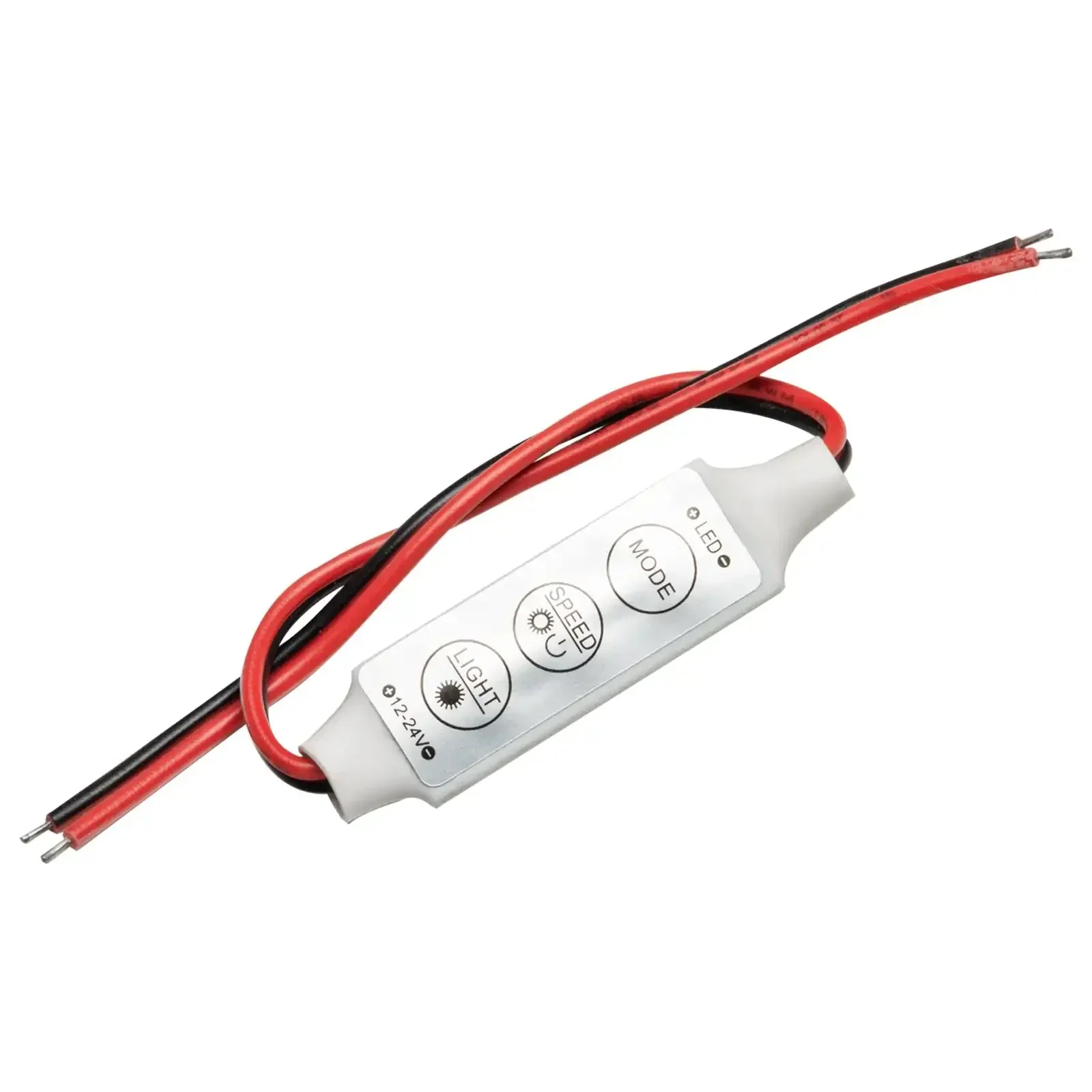

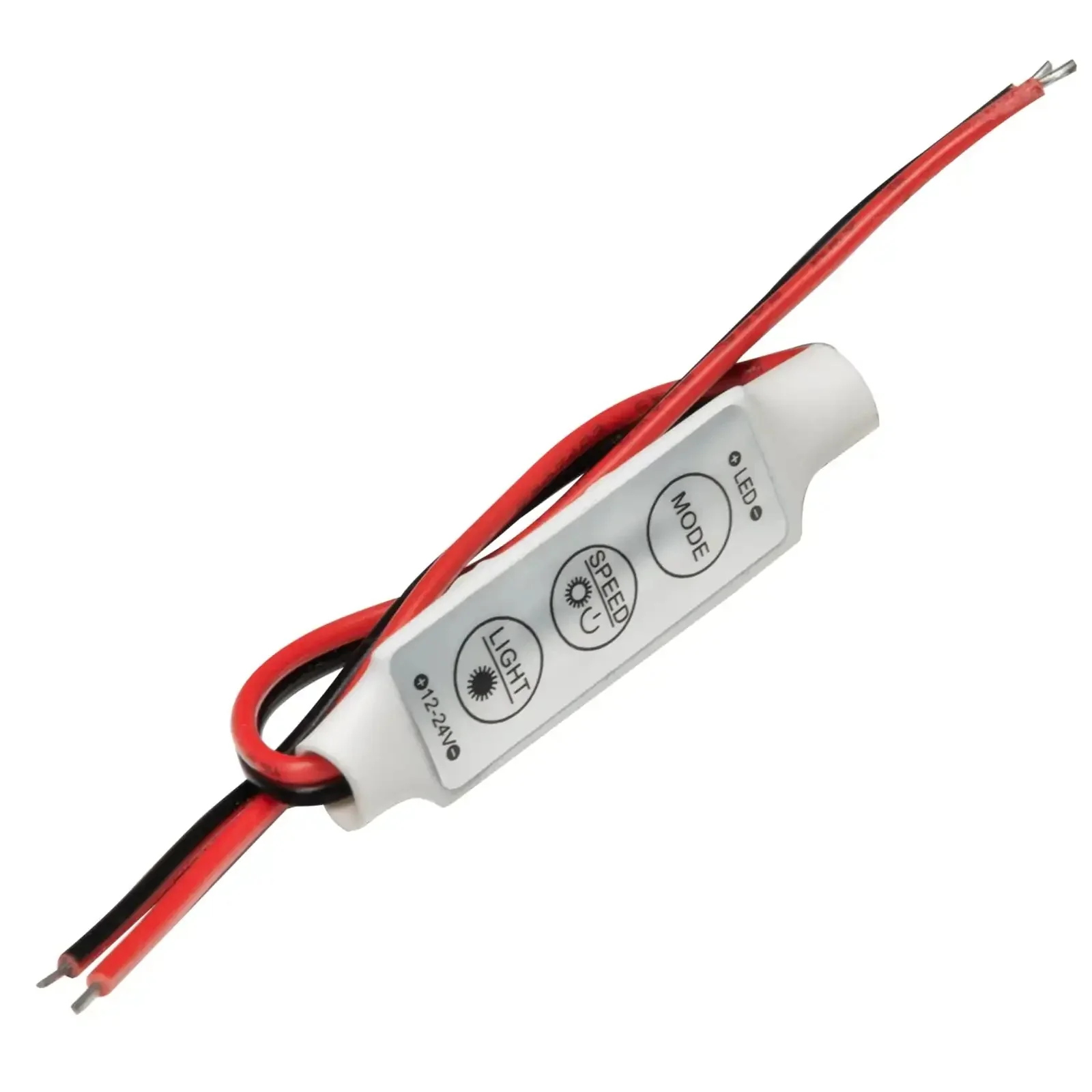

Easy to install LED controller from ORACLE Lighting. Called "in-line" because it directly wires up in between a power source and the LED product.

Modes include:
- Breathing Mode
- Heartbeat Mode
- Primary and Secondary Strobe Modes
- Control Dimming Mode

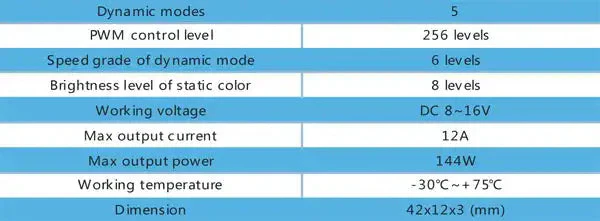

Product Details:
- Input: 8-16V DC
- Max load current: 12 Amps
- Output: 1 channel
- Output Power: 144 Watts
- Dynamic Modes: 5
- Levels of Control: 256
- Levels of Speed: 6
- Levels of Brightness: 8

Also included:
- Speed Variable Button
- Visible markings for the + and - 12V and LED sources.

Download Install Guide
