Important NOTES:
•This item is built-to-order.
•Order can take up to 6-8 weeks to be completed.
•This is a built to order item, order cannot be cancelled/refunded.
•The ColorSHIFT option must be used in conjunction with one of our ColorSHIFT Controllers. (Sold Separately)
•Dual Intensity Option will allow your emblem to operate as a running light and an additional brake light.
•Dual Intensity Option will not operate with the ColorSHIFT option.

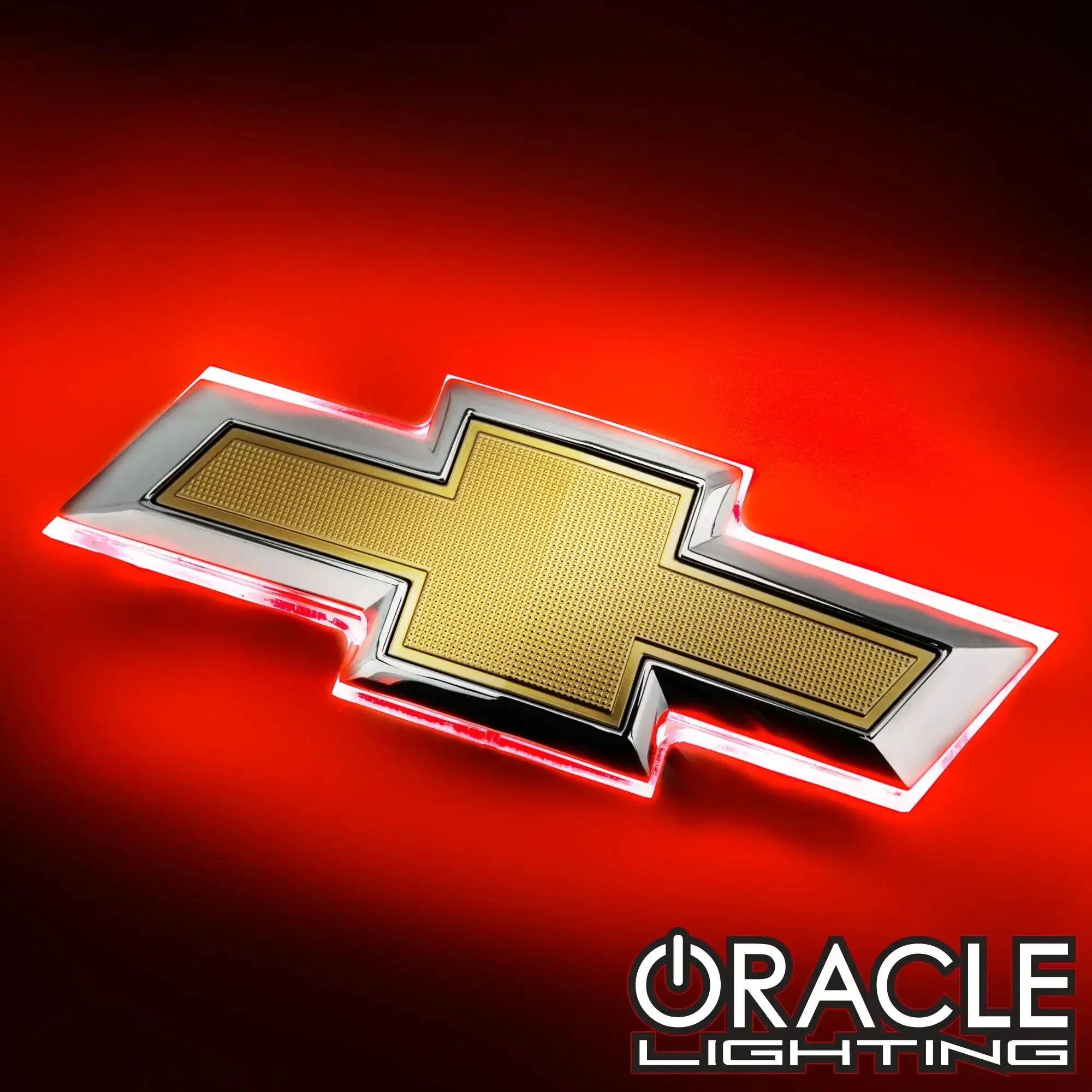

Package Includes the following all assembled and ready to install!
- OEM Chevy Badge
- Clear Acrylic Insert
- ORACLE LEDs

INTENSITY	ORACLE PART#	COLOR/OPTION
Single Intensity	3460-001	White
Single Intensity	3460-002	Blue
Single Intensity	3460-003	Red
Single Intensity	3460-004	Green
Single Intensity	3460-005	Amber
Single Intensity	3460-007	UV/Purple
Single Intensity	3460-009	Pink
Single Intensity	3460-010	Aqua
Single Intensity	3460-333	ColorSHIFT



INTENSITY	ORACLE PART#	COLOR/OPTION
Dual Intensity	3461-001	White
Dual Intensity	3461-002	Blue
Dual Intensity	3461-003	Red
Dual Intensity	3461-004	Green
Dual Intensity	3461-005	Amber
Dual Intensity	3461-007	UV/Purple
Dual Intensity	3461-009	Pink
Dual Intensity	3461-010	Aqua

Installation Instructions:

1. Remove Old Badge (detailed in included instructions)
2. Drill Hole in Trunk Lid Route Wires to Factory Rear Lighting Wires
3. Remove Self-Adhesive backing and stick to Trunk lid
4. Connect Wires to Parking Lights as per Instructions

Download Install Guide
