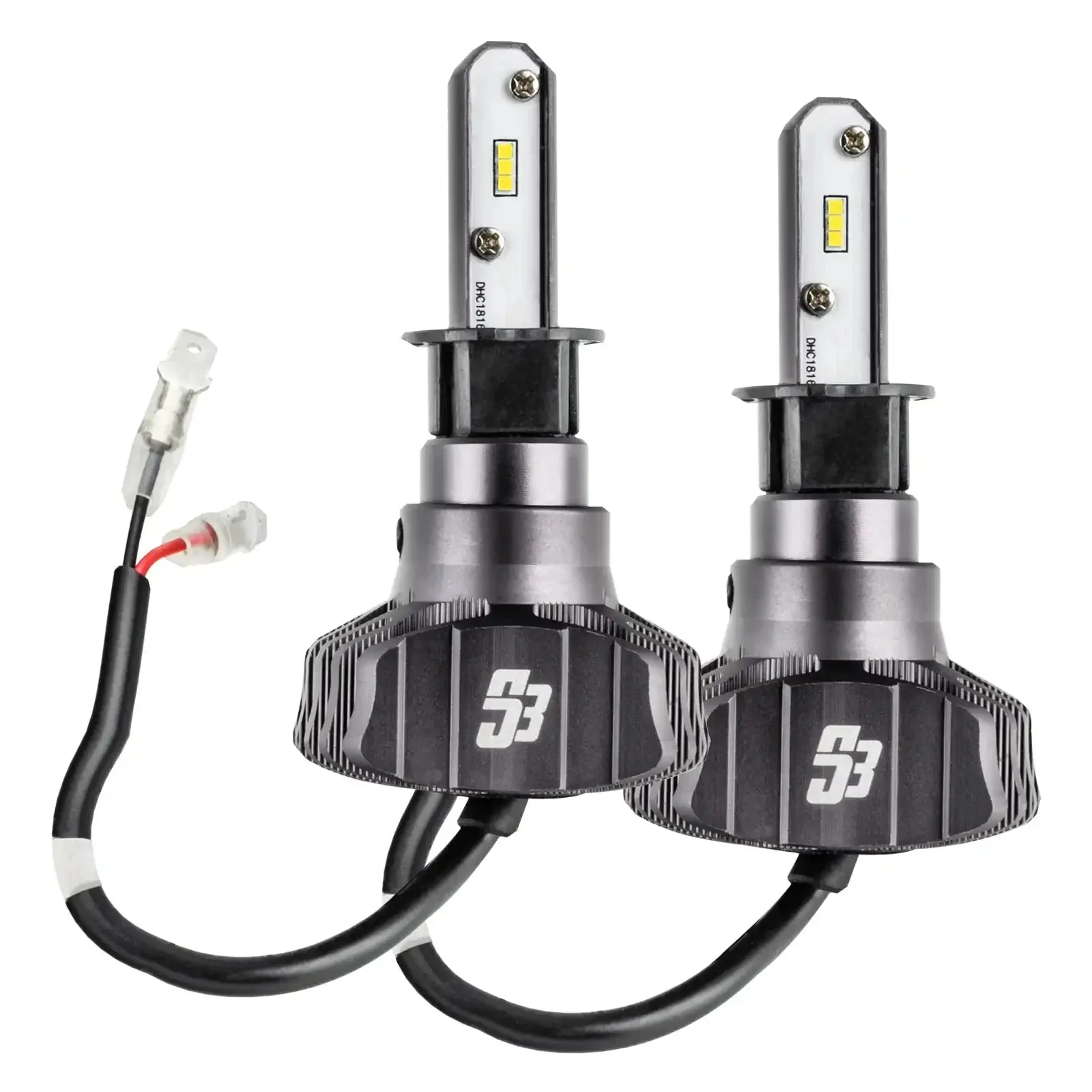

ORACLE Lighting H1 - S3 LED Light Bulb Conversion Kit High/Low Beam (Non-Projector)
ORACLE Part# S5243-001
ORACLE Lighting S3 LED Conversion Bulbs Instantly provide 3200 Lumens of Crystal Clear 6000K light output. The electronic components of the S3 Headlight bulbs are housed in a sealed waterproof heat-sink design, eliminating the need for external drivers and cooling fans.
The CSP (Chip Scale Package) LED Chip Design features a small package size but high intensity volume per unit with less heat value resulting in industry-leading Luminous Efficacy (science talk for “Best Bang for your Buck”). This new low-profile design reduces common bulb fitment issues for an easy Plug & Play DIY installation.
“Dodge, Chrysler, Jeep, or later model EU (Mercedes, BMW, Audi, ETC) may require additional CAN-BUS decoder harnesses in the event flashing, strobing, or shutting down with engine ON occurs.”
Product Specs:
• Operating Voltage: 12V/24V
• Color temperature: 6000K
• Material: 6160 aluminum
• PCB: Double Layer Copper
• Current Demand: <1 Amp
• Warranty: 1 Year Limited
• LED Chip Type: CSP
• Brightness: 3200 Lumens
• Power Draw: 12W / Bulb
• luminous Efficacy: 130lm/W*
• Industry-Leading Efficacy Ratio
View Installation Instructions
Details & FAQs
Your H1 Halogen Bulbs Are the Weakest Link in Your Headlight System
Your headlight housing, projector lens, and reflector bowl are all engineered to throw as much light as possible down the road ahead. The factory H1 halogen bulb you're running? It's holding all of that engineering back. Dim, warm-yellow output, a lifespan measured in hundreds of hours, and an inefficiency ratio that wastes more energy as heat than it converts to light.
ORACLE Lighting S3 LED Conversion Bulbs instantly provide 3,200 lumens of crystal clear 6000K light output. Same socket. Same housing. Dramatically different result — from the moment you turn the key.
Available in three H1 configurations to match your specific headlight setup: High/Low Beam Non-Projector, High/Low Beam Projector, and High Beam Only — ensuring the right optical design for your vehicle's headlight architecture.
The S3 Technology Advantage — Why This Kit Outperforms the Competition
CSP Chip Scale Package LED Technology — Maximum Output, Minimum Size
The CSP (Chip Scale Package) LED chip design features a small package size but high intensity volume per unit with less heat value, resulting in industry-leading luminous efficacy. In plain terms: CSP technology packs more light output into a smaller emitter footprint than conventional LED designs — which means more lumens per watt, less heat per lumen, and a beam pattern that more closely replicates the factory halogen filament position. That last point matters enormously in headlight applications, where the position of the light source relative to the reflector bowl or projector lens directly determines beam pattern quality, cutoff sharpness, and glare control.

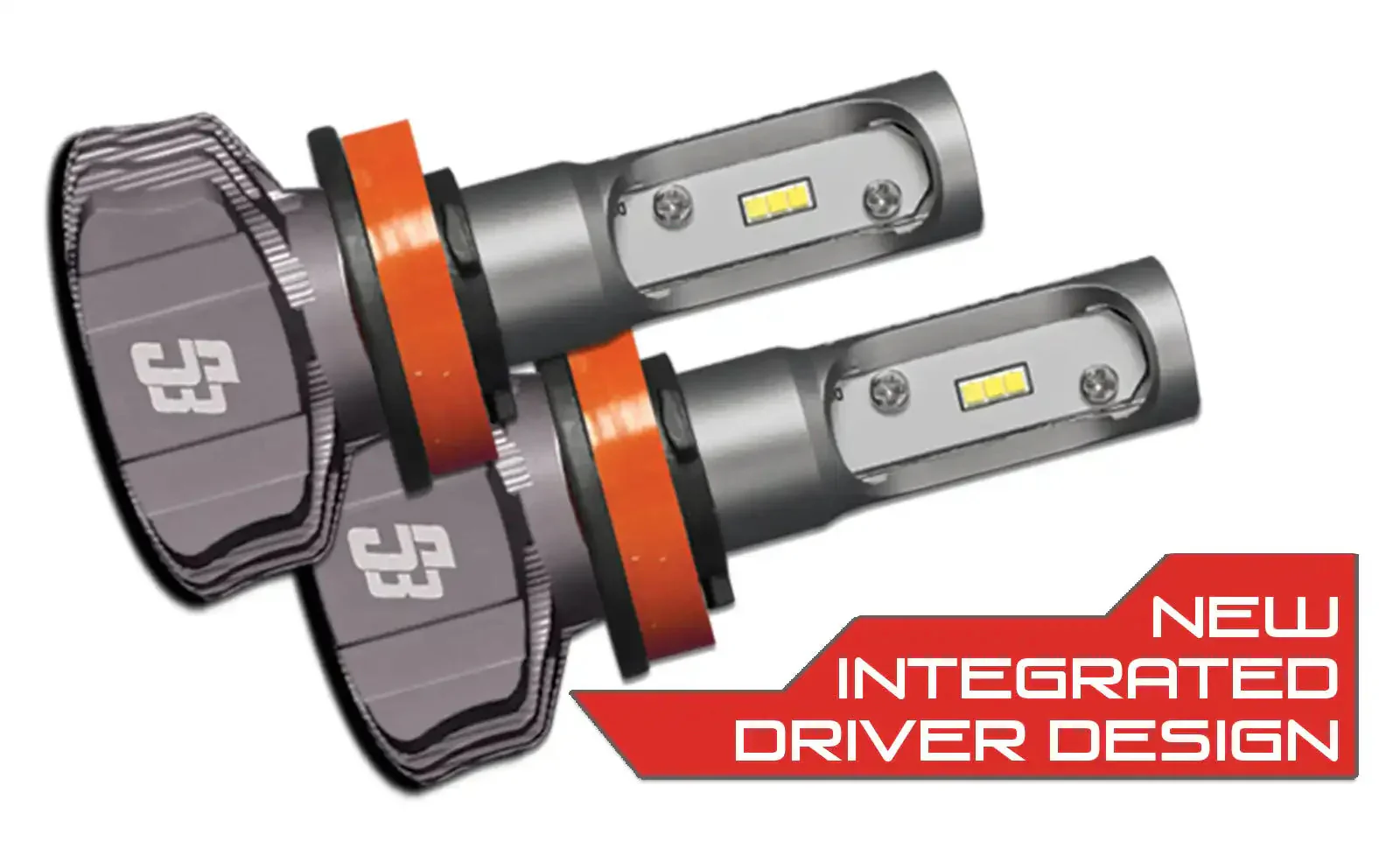

Sealed Waterproof Heatsink — No External Drivers, No Cooling Fans
The electronic components of the S3 headlight bulbs are housed in a sealed waterproof heatsink design, eliminating the need for external drivers and cooling fans. This is a critical engineering differentiator. Many LED headlight conversion kits require external driver boxes that must be mounted in the engine bay — adding installation complexity, additional failure points, and potential water ingress risk. The S3 eliminates all of that. The driver electronics are integrated directly into the sealed heatsink body, resulting in a compact, self-contained unit that installs exactly like a halogen bulb — with none of the external hardware headaches.
Low-Profile Design — Solves the Fitment Problem Other Kits Create
This new low-profile design reduces common bulb fitment issues for an easy plug-and-play DIY installation. One of the most persistent complaints about LED headlight conversion kits is that the driver body or heatsink is too large to fit inside sealed headlight housings without modification. ORACLE engineered the S3 specifically to address this — the compact, low-profile heatsink body fits cleanly inside the vast majority of H1 headlight housings without clearance issues, modification, or forced assembly.
Industry-Leading Luminous Efficacy — 130 lm/W
Luminous efficacy: 130 lm/W — industry-leading efficacy ratio. At 12W per bulb and 3,200 lumens of output, the S3 delivers its light output with exceptional electrical efficiency. The sub-1 amp current demand means virtually no additional electrical load on the vehicle's charging system — a meaningful advantage on vehicles with marginal alternator capacity or heavily loaded accessory circuits.
Built for Both 12V and 24V Systems — Cars, Trucks, and Fleet Vehicles
Operating voltage: 12V/24V. The S3 H1 kit is not limited to standard 12V automotive applications — it operates equally well on 24V systems found in heavy trucks, commercial vehicles, and fleet applications. For fleet managers evaluating LED headlight upgrades across a mixed-voltage vehicle lineup, this dual-voltage compatibility means a single SKU covers the entire fleet without configuration exceptions.
Three H1 Kit Configurations — Choose the Right One for Your Headlight Housing
High/Low Beam — Non-Projector (Reflector Housing)
The non-projector version is optimized for vehicles with traditional reflector bowl headlight housings — where the bulb sits behind a mirror-finish parabolic reflector that shapes and directs the beam. The CSP chip orientation in the non-projector version is calibrated for reflector housing optics, maximizing beam throw and pattern quality in this housing type. If your vehicle uses traditional sealed-beam-style or open-reflector headlights, this is your kit.
High/Low Beam — Projector Housing
The projector version is optimized for vehicles with projector-lens headlight housings — where the bulb sits at the focal point of a projector lens that creates a sharp cutoff beam pattern. The CSP chip orientation in the projector version is calibrated for projector housing optics, maintaining a clean cutoff line and minimizing glare scatter. If your vehicle uses projector headlights (common on most post-2010 vehicles), this is your kit. Using a non-projector-optimized LED in a projector housing — or vice versa — can result in a scattered, unfocused beam pattern that underperforms the factory halogen.
High Beam Only
For vehicles where the H1 bulb is used exclusively in the high beam position, the high-beam-only version delivers the same 3,200-lumen output in a configuration optimized for maximum throw distance rather than cutoff pattern precision. If you're upgrading a dedicated high beam circuit only, this is your kit.
Important Compatibility Note — CANBUS Vehicles
Dodge, Chrysler, Jeep, or later model EU vehicles (Mercedes, BMW, Audi, etc.) may require additional CANBUS decoder harnesses in the event flashing, strobing, or shutting down with engine ON occurs. This is a characteristic of vehicles with load-monitoring CANBUS systems that detect the lower electrical draw of LED bulbs compared to halogen and interpret it as a bulb-out condition. CANBUS decoder harnesses are available separately and resolve the issue completely — they are a one-time addition that makes the S3 kit fully compatible with affected vehicles. If you drive a Dodge, Chrysler, Jeep, or a post-2010 European vehicle, plan for a CANBUS decoder as part of your installation.
Product Specifications
Operating Voltage: 12V/24V | Color Temperature: 6000K | Material: 6160 Aluminum | PCB: Double Layer Copper | Current Demand: Less than 1 Amp | Warranty: 1-Year Limited | LED Chip Type: CSP | Brightness: 3,200 Lumens | Power Draw: 12W per bulb | Luminous Efficacy: 130 lm/W
Bulb Type: H1
Housing Compatibility: Non-Projector (reflector), Projector, or High Beam Only — select correct version for your application
Installation: Plug-and-play, direct H1 socket replacement
External Drivers Required: None
Cooling Fans Required: None
Quantity: Sold as a pair
FAQs: ORACLE Lighting H1 S3 LED Headlight Bulb Conversion Kit
Q: What is the difference between the Non-Projector, Projector, and High Beam Only versions?
The three versions differ in how the CSP LED chip array is oriented within the bulb body — each is calibrated for a different headlight housing optic. The Non-Projector version is optimized for traditional reflector bowl housings. The Projector version is optimized for projector-lens housings and maintains a clean cutoff line. The High Beam Only version is optimized for maximum forward throw in a dedicated high beam circuit. Using the wrong version for your housing type will result in a suboptimal beam pattern — always select based on your vehicle's headlight housing design, not just the bulb socket type.
Q: Do I need to mount external driver boxes in my engine bay?
No. The electronic components of the S3 headlight bulbs are housed in a sealed waterproof heatsink design, eliminating the need for external drivers and cooling fans. The S3 is entirely self-contained — the driver circuitry is integrated into the bulb body itself. There are no external components to mount, no additional wiring to route, and no extra failure points to manage. Installation is as simple as removing the factory H1 halogen and installing the S3 in its place.
Q: My vehicle is a Jeep / BMW / Mercedes — will these work without modification?
They will work, but Dodge, Chrysler, Jeep, or later model EU vehicles (Mercedes, BMW, Audi, etc.) may require additional CANBUS decoder harnesses in the event flashing, strobing, or shutting down with engine ON occurs. A CANBUS decoder harness is available separately and resolves this completely. It is a one-time addition to the installation — once installed, the decoder makes the S3 kit fully transparent to the vehicle's CANBUS system.
Q: How bright is 3,200 lumens compared to a factory H1 halogen bulb?
A standard factory H1 halogen bulb typically produces between 1,000 and 1,550 lumens. The ORACLE S3 delivers 3,200 lumens of crystal clear 6000K output — approximately two to three times the raw lumen output of a factory halogen in the same socket. The color temperature difference (6000K crystal white vs. the ~3,200K warm yellow of halogen) further increases perceived contrast and visibility, particularly on dark roads, in fog, and in rain where cool white light reveals road details that warm halogen washes out.
Q: Will these fit inside my sealed headlight housing without clearance issues?
The low-profile design of the S3 reduces common bulb fitment issues that affect many LED headlight conversion kits with oversized heatsink bodies. The S3 is specifically engineered for compact fitment in the vast majority of H1 headlight housings. However, fitment can vary by vehicle — consult your vehicle's H1 housing depth and rear clearance before purchasing, and check ORACLE's fitment resources or community forums for vehicle-specific confirmation if needed.
Q: What warranty does the ORACLE H1 S3 LED Conversion Kit come with?
The ORACLE H1 S3 LED Conversion Kit is backed by a 1-year limited warranty covering defects in materials and workmanship. Given the sealed waterproof heatsink construction, CSP chip technology, and sub-1 amp operating efficiency, these bulbs are engineered to outlast the warranty period significantly under normal automotive use.
Q: Are these sold as a pair or individually?
The ORACLE H1 S3 LED Conversion Kit is sold as a complete pair — both driver and passenger side bulbs are included in a single purchase. No need to order two separate listings or calculate quantities. One kit covers a complete headlight upgrade for both sides of the vehicle.
