Bronco Owners...your tuner, throttle booster, tire size calibrator, start stop eliminator, TPMS adjuster and more....is here. The All-in-One Pulsar XT for Bronco.

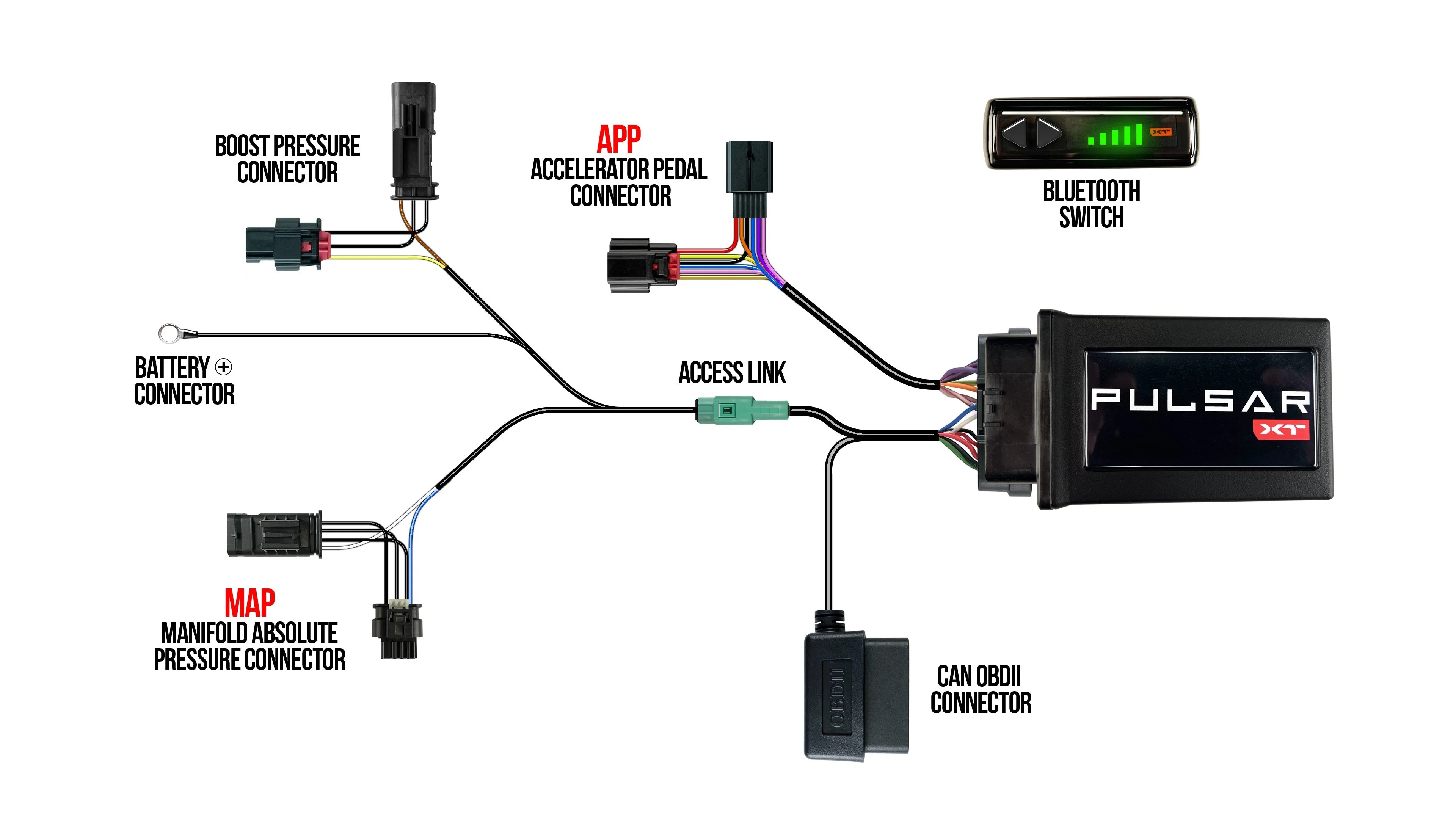

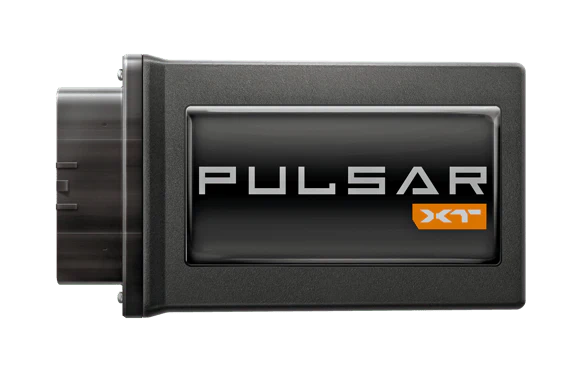

Pulsar XT is an all-new take on performance and calibration for your 2.3L and 2.7L and even 3.0L Raptor Bronco and it's unlike any other device on the market. Pulsar XT is an innovative inline module engineered to keep your factory PCM untouched, leaving no trace in the system when removed for dealer service. Add up to 55hp/69ft-lbs torque to your Ford Bronco while improving drivability, throttle response and feature control. Enjoy Pulsar XT's shift-on-the-fly performance gains, with 5 power levels changeable through our wireless Bluetooth switch. Pulsar XT also offers full calibration adjustment through an innovative smartphone app that allows you to adjust your speedometer for larger tires and adjust pedal sensitivity to your liking.

The intuitive mobile app also gives you control over TPMS settings, can disable your Auto Start/Stop, lighting controls, read and clear DTC's and more. The device also offers cold engine protection so no power is added until you're up to operating temperatures, keeping your engine safe. We've been tuning Ecoboost engines since their inception and Pulsar XT is the most advanced plug in module on the market offering more features than the competition at a lower price. Don't settle for less, or spend your hard earned cash on two or three different devices that still won't give you everything Pulsar XT can. You'll love the way your Ford Bronco reacts with Pulsar XT, we can guarantee it.

Features:

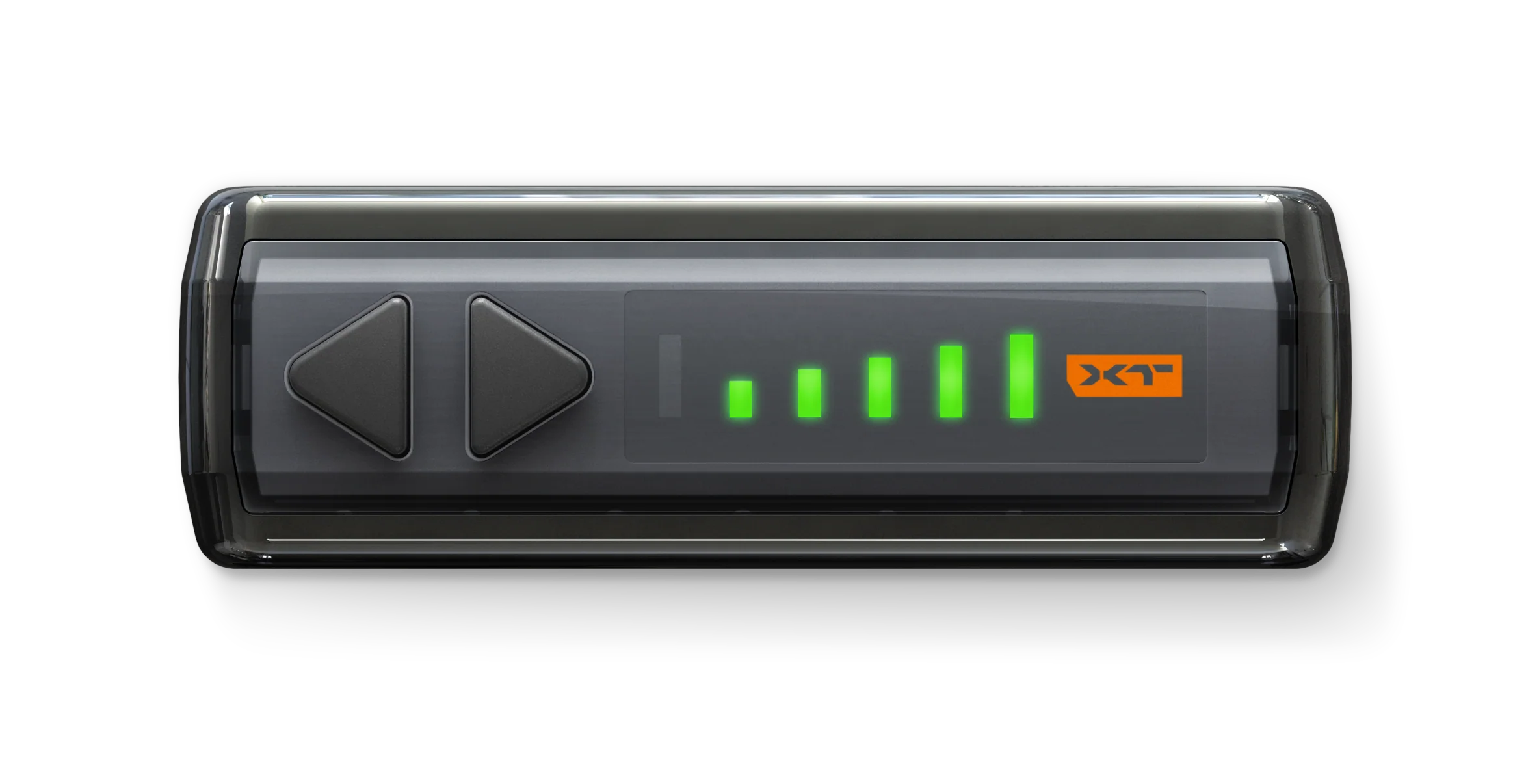

• User adjustable power levels on the fly with Wireless Bluetooth switch

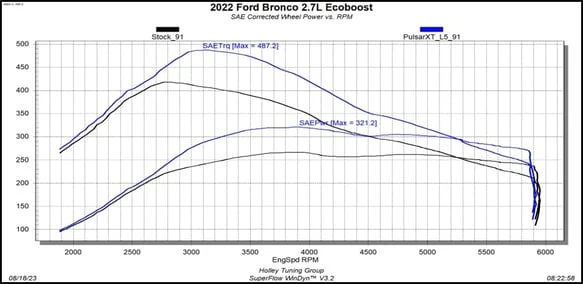

• Adds up to 55hp/69tq at peak to 2.7L

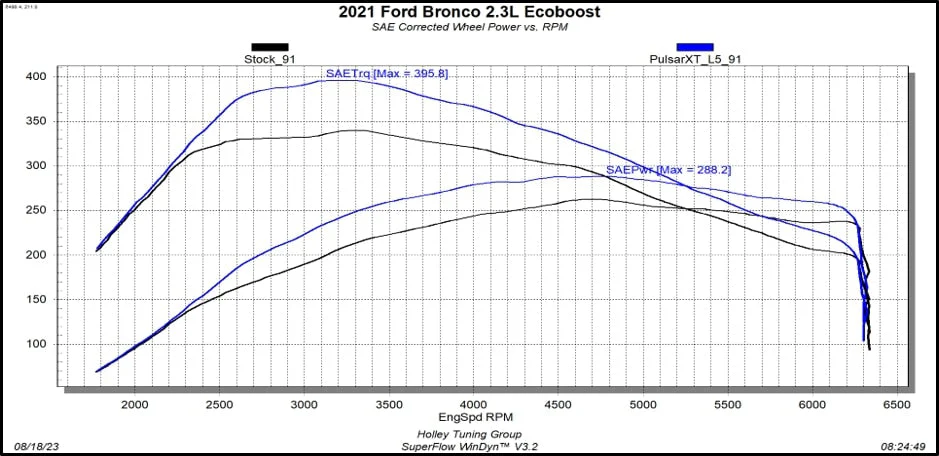

• Adds up to 26hp/69tq at peak to 2.3L

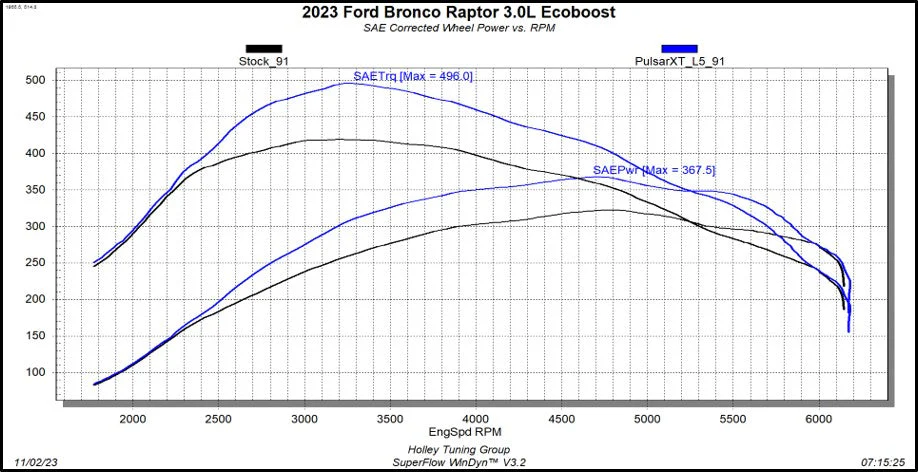

• Add up to 45hp/77tq at peak to 3.0L Raptor
• Enable/disable Auto Start/Stop (*2023-2024 must also disable battery management system)
• Enable/disable TPMS or adjust warning threshold
• Improves economy, throttle response, low end torque, and performance
• 7 throttle sensitivity settings adjustable in the app for each power level
• Read and clear DTC's
• Calibrate speedometer for larger tires (Up to 36.25" measured)

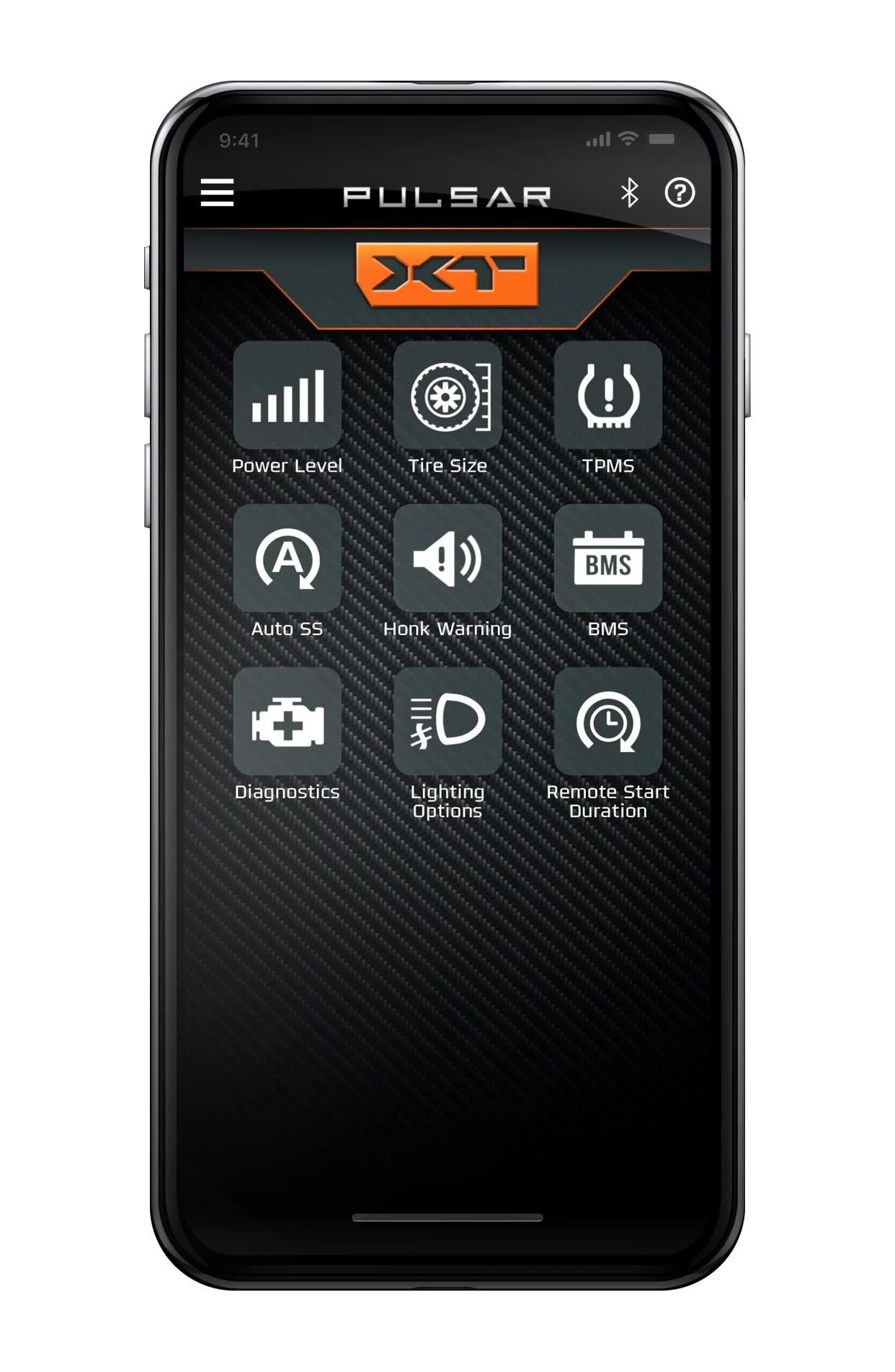

• Smartphone App control for Android and IOS
• Disable Battery Management System
• Testing and data collected on 91 Octane
• Enable Fog Beams with High Beams
• Check Emissions Readiness Monitors
• Adjust Remote Start Idle Duration
• Dark Mode Disables interior lighting
• Head Lamp Switch Adjust
• Disable Honk Warning when vehicle is left running with no fob
• Adjust Daytime Running Lights

Instructions - d10031000_rev00.pdf

Emissions

This part is legal under the provisions of EPA??ç?ûs Tampering Policy dated November 23rd, 2020.
